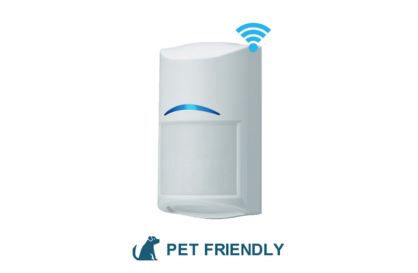

Bosch Blue Line Radion Wireless Tritech PIR Detector Pet Friendly RFDL-11

Wireless motion detector, 35ft (11m)

• 11 m x 11 m (35 ft x 35 ft) coverage

• Pet Immunity up to 45 kg (100 lb)

• Includes battery life extension feature

• Draft and insect immunity

• Supervised for low-battery, cover-tamper, and removal from mounting surface

• Operational up to 5 years using 4 user replaceable AA Alkaline Batteries

Detection radius (m)	11 m
Dimensions (H x W x D) (mm)	138 x 72 x 64 mm
Input voltage (VDC)	6 VDC
Installation height (m)	2 – 2.40 m
Maximum pet immunity (kg)	45 kg
Operating temperature (°C)	-10 – 49 °C
Wireless transmission frequency	433.42 MHz





Quantity	Component
1	Detector
1	Alkaline battery (AA)
1	Installation guide
1	Hardware pack
