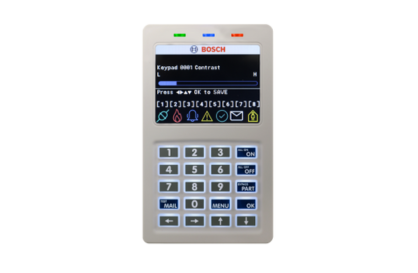

Bosch CP736B Graphic Keypad for Bosch 6000

3.5" Colour keypad - S/C

• Customizable Installer banner display

• 3.5” Color graphical display with LED backlight

• 40bit MiFare smart card reader built-in

• Alpha-numeric text prompting/programming



Connectivity

Proprietary RS485 LAN. Vision-X, Vision-XIP, Solution 6000 and Solution 6000-IP Panels supported

Power

+12VDC, 110mA Max (LAN powered +9VDC - +16VDC)

Operating temperature (°C)	0 °C – 55 °C
Operating relative humidity, non-condensing (%)	5% – 85%

Color	White
Dimensions (H x W x D) (mm)	149 mm x 88 mm x 21.5 mm

Display color

Color
