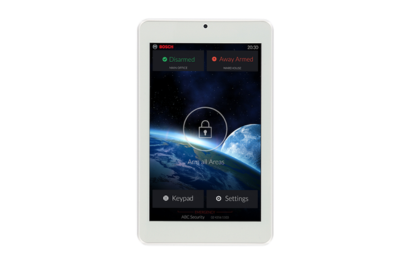

TOUCHONE 7" CODE PAD SDI2
- Durable touch screen with adjustable LED backlight
- Graphic interface consisting of intuitive icons and menus
- Language option, individually selectable by user
- Setup wizard for easy configuration
| Dimensions |
192.69 mm x 115.69 mm x 13.83 mm |
| Maximum screw size |
6G pan head |
| Voltage (Operating) |
12VDC |
| Current |
Normal: 400mA Peak: 800mA |
| LCD |
7” HD WXGA 1280 px x 800 px, IPS, 400 nits. |
| Touch Panel |
5 point multi-touch, capacitive, GF glass touch sensor. |
| SD Card |
MicroSD (SDHC) 2GB to 32GB |
| Compatibility |
ICP-SOL2 & ICP-SOL3 Firmware version 1.0.3+ |
Parts included with this product
| Quantity |
Component |
| 1 |
TouchOne keypad |
| 1 |
Installation manual |
