Description

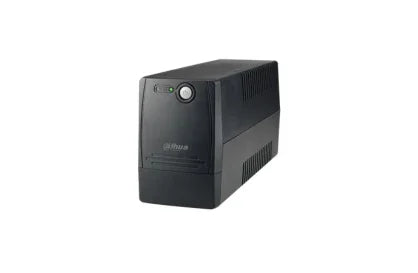

Dahua 1500VA/900W Line-interactive UPS
Wide input voltage range: AC81~145V or AC140~290V, meet the requirements in different parts for electric network fluctuation. Boost and buck AVR for voltage stabilization. Off-mode charging, cold start function and full protection. Continuous power supply for preventing data loss. Compact size.
Specifications
Model: DH-PFM350-900
Plug type: Australian
Capacity: 1500VA/900W
Input: Rated voltage: 220Vac~240Vac, 110Vac~120Vac; Voltage range: 140Vac~290Vac, 81Vac~145Vac; Rated frequency range: 50Hz or 60Hz; Power factor: 0.6
Output: Voltage: 220/230/240 VAC, 110/120 VAC; AC Voltage Regulation (Batt. Mode): ±10%; Frequency Range (Batt. Mode): 50Hz or 60Hz±1Hz; Transfer Time: 2-6ms; Waveform (Batt. Mode): Simulated sinewave
Battery: Battery type & number: 12 V/9 Ah x 2; Typical recharge time: 4 hours recover to 90% capacity; Charging voltage: 27.4V±1%
Indicators: Battery mode: Green lighting; AC mode: Green lighting; Alarm: Battery mode: Sounding every 10 seconds; Low battery: Sounding every second; Overload: Sounding every 0.5 second; Fault: Continuously sounding
Protection: Full protection - Overload, discharge and overcharge protection
Environmental: Operating temperature: 0°C ~ +40°C (+32°F ~ +104°F); Operating humidity: 0~90% RH(non-condensing); Altitude range: <1000m(3280.84ft)
Construction: Color: Black; Noise level: <40dB; Dimensions: 320mmx130mmx182mm(15.6"x5.12"x7.17"); Weight: 10.4kg(22.93lb)
