Description

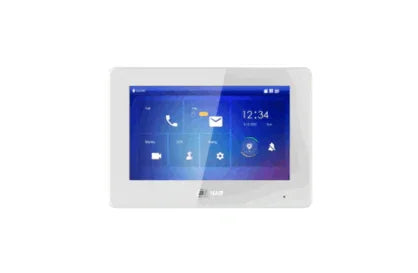

2-wire & Wi-Fi Indoor Monitor
- 7" TFT capacitive touchscreen, 1024 × 600
- 6-channel alarm input and 1-channel alarm output
- Wi-Fi
- Outdoor station and IPC monitor
- H.265 and H.264 video decoding
- 2-wire digital communication
Specifications
- System
-
Main Processor Embedded processor
-
Operating System Embedded Linux operating system
-
Network Protocol RTSP; RTP; SIP; DNS; SSH
- Basic
-
Screen Type Capacitive touchscreen
-
Display 7" TFT
-
Screen Resolution 1024 × 600
-
Audio Compression G.711a; G.711Mu; G.711u; PCM
-
Audio Input 1
-
Audio Output Built-in speaker
-
Audio Mode 2-way Audio
-
Audio Enhancement Echo suppression
-
Audio Bit Rate 16 kHz; 16 Bit
- Function
-
Communication Mode Digital 2-wire
-
Information Release Receive and view text information released by the management center
-
Leave Videos Yes (insert an SD card into the indoor monitor)
-
DND Mode Do not disturb period can be set; Do not disturb mode
-
Number of Extensions Villa: 3; Apartment: 2
-
Wi-Fi Yes
-
Wireless Standard IEEE802.11b/802.11g/802.11n
-
Wireless Frequency Range 2.4 GHz
-
Wireless Security Encryption WPA/WPA2; WPA-PSK/WPA2-PSK
-
Storage Micro SD card (up to 64 GB)
- Performance
-
Casing PC + ABS
-
Port RS-485 1
-
Alarm Input 6
-
Alarm Output 1
-
Power Output 1 (12 V/200 mA)
-
Door Bell Yes (use any alarm input port)
-
Network One two-wire port and one 10 Mbps/100 Mbps Ethernet port (one of them can be selected)
-
Alarm SOS Yes
- General
-
Color White/Black
-
Power Supply 48 VDC 1.25 A
-
Installation Surface mount
-
Certifications CE; FCC
-
Accessory Bracket and alarm ribbon cable (included)
-
Dimensions 189.0 mm × 130.0 mm × 26.9 mm (7.44" × 5.12" × 1.06")
-
Operating Temperature –10 °C to +55 °C (+14 °F to 131 °F)
-
Operating Humidity 10%-95% RH (non-condensing)
-
Operating Altitude Beneath 3000 m (9842.52 ft)
-
Power Consumption Standby ≤ 2 W; working ≤ 6 W
-
Net Weight 0.35 kg (0.78 lb)
-
Gross Weight 0.56 kg (1.23 lb)
