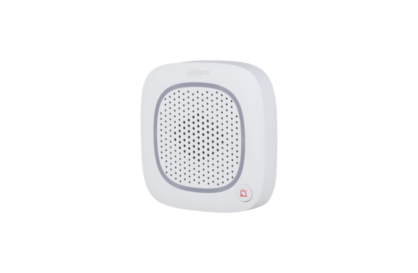

ARA14-W2
Wireless Intercom Siren
-
Two-way talk via RF transmission.
-
High-decibel alarm sound for effective alerts.
-
Multiple alarm sounds: Fire, medical, intrusion, panic, and more.
-
Configurable arming/disarming prompt sound and LED indicator.
-
Supports panic button for emergency situations.
-
Voice talk support through the app and SIP.
Specifications
Port
Video & Audio
Function
-
Button: 1 × panic button, 1 × power button
-
Buzzer: Yes
-
Remote Update: Cloud update
-
Low Battery Detection: Yes
-
Tamper: Yes
Technical
-
LED Indicator: Red, blue, and green indicators
-
Scenario: Indoor
-
Operating Current:
-
Battery (3V): 1.5 A (Max), 20 µA (Standby)
-
DC (12V): 0.4 A (Max), 1.5 mA (Standby)
-
Sound and Light Alarm: Yes
Wireless
-
Carrier Frequency: 433.1 MHz–434.6 MHz
-
Communication Mechanism: Two-way
-
Communication Distance:
-
Alarm transmission: 1200 m
-
Intercom: 800 m
-
Encryption Mode: AES128
-
Frequency Hopping: Yes
General
-
Power Supply: 12 VDC / 4 × CR123A battery
-
Battery Model: CR123A
-
Standby Time: 3 years (triggered once every 2 weeks, alarms for 120 sec)
-
Power Consumption: 4.5 W (Max), 0.4 mW (Standby)
-
Operating Temperature: -10 °C to +55 °C (+14 °F to +131 °F) (indoor)
-
Operating Humidity: 10%–90% RH
-
Product Dimensions: 133.0 mm × 133.0 mm × 35.5 mm (5.24" × 5.24" × 1.40")
-
Net Weight: 377 g (0.83 lb)
-
Gross Weight: 507 g (1.12 lb)
-
Installation: Wall mount
-
Casing Material: PC + ABS
-
Appearance Color: White
-
Certifications: CE
-
Anti-corrosion Level: Basic Protection
-
Storage Temperature: -10 °C to +55 °C (+14 °F to +131 °F)
-
Storage Humidity: 10%–90% RH
-
Packaging Dimensions: 170 mm × 166 mm × 55 mm (6.69" × 6.54" × 2.71")
