HA-KIT-IP2_POE Hilook IP Video Intercom Kit With 4 Port PoE Switch

• Convenient Hik-Connect APP Mobile Control
• One call button for easier calls
• Standard PoE power supply

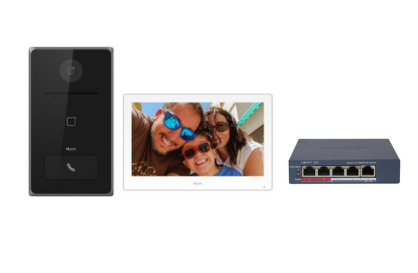

• Including:
  • Door station x1
  • Indoor station x1
  • 4 Port Fast Ethernet Smart POE Switch x1
  • 32GB TF card x1
• Power adapter included in the package
• Datasheet
• User Manuals



Door Specifications

System Parameters

• Operating System: Linux
• Flash: 32 MB
• RAM: 256 MB

Video Parameters

• Camera: 2MP HD camera
• Night Vision: Low illumination IR supplement mode (2.5m)
• Backlight Compensation: Supported
• Digital Noise Reduction: Supported
• WDR: True WDR
• Field of View: Horizontal: 129°, Vertical: 75°
• Video Compression Standard: H.264
• Stream:
  • PAL:
    • Main stream: 1080p@25fps, 720p@25fps
    • Sub stream: 720p@25fps, 480p@25fps
  • NTSC:
    • Main stream: 1080p@30fps, 720p@30fps
    • Sub stream: 720p@30fps, 480p@30fps
• Motion Detection: Supported
• Flash-Avoid Frequency: 50 Hz, 60 Hz

Audio Parameters

• Audio Input: 1 built-in omnidirectional microphone
• Audio Output: 1 built-in loudspeaker
• Audio Quality: Noise suppression and echo cancellation
• Audio Compression Standard: G722.1, OPUS, G711U, G711A, G726, AAC_LC, AAC_LD
• Audio Compression Rate: 16/32/64 Kbps
• Audio Intercom: Two-way audio communication

Network Parameters

• Network Protocol: TCP/IP, SIP, RSTP
• Wi-Fi: 2.4GHz, IEEE802.11b/g/n

Device Interfaces

• Network Interface: 1 RJ-45, 10/100 Mbps self-adaptive
• RS-485: 1
• Alarm Input: 4
• Lock Control: 1 relay, Max. 30 VDC 2 A
• Door Contact Input: 1
• Tamper: 1
• TF Card: 1 (Reserved)
• Audio Output: 1 external loudspeaker (Reserved)

General Specifications

• Power Consumption: < 10 W
• Working Temperature: -40°C to 53°C (-40°F to 127.4°F)
• Working Humidity: 10% to 95%
• Dimensions: 181.6 mm × 103.6 mm × 29.5 mm
• Installation: Surface mounting, Flush mounting
• Protection Level: IP65
• Indicator: 2
• Power Supply:
  • IEEE802.3af, Standard PoE
  • 12 VDC

---

Indoor Station Specifications

System Parameters

• Operating System: Linux
• Memory: 128 MB
• Flash: 32 MB

Display Parameters

• Display Screen: 7-inch colorful TFT screen
• Display Resolution: 1024 × 600
• Operation Method: Capacitive touch screen

Audio Parameters

• Audio Input: 1 built-in omnidirectional microphone
• Audio Output: 1 built-in loudspeaker
• Audio Quality: Noise suppression and echo cancellation
• Audio Compression Standard: G.711 U
• Audio Compression Rate: 64 Kbps

Network Parameters

• Wired Network: 1 RJ-45, 10/100 Mbps self-adaptive
• Wireless Network: 2.4 GHz, IEEE802.11b/g/n
• Protocol: TCP/IP, SIP, RTSP

Device Interfaces

• RS-485: 1 (Half duplex)
• Alarm Input: 8-channel alarm inputs
• Relay Output: 2
• TF Card: Supports TF card, up to 128 GB

General Specifications

• Power Consumption: ≤ 5 W
• Power Supply:
  • 12 VDC, 1 A
  • IEEE802.3af, Standard PoE
• Working Temperature: -10°C to 50°C (14°F to 122°F)
• Working Humidity: 10% to 90%
• Dimensions (L × W × H): 175 mm × 113.5 mm × 21 mm (6.9" × 4.5" × 0.83")



PoE Specifications

General Specifications

• Shell: Metal material
• Net Weight: 0.26 kg (0.573 lb)
• Gross Weight: 0.75 kg (1.65 lb)
• Dimensions (W × H × D): 121.1 mm × 27.6 mm × 83.1 mm (4.77'' × 1.09'' × 3.27'')
• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
• Operating Humidity: 5% to 95% (no condensation)
• Relative Humidity: 5% to 95% (no condensation)
• Power Supply: 54VDC, 1.2A
• Installation Mode: Desk-Mounted, Wall-Mounted
• Max. Power Consumption: 65 W
• Power Consumption in Idle: 0.9 W
• Surge Protection: 6 KV

---

Network Parameters

• Ports: 4 × 10/100 Mbps PoE ports, 1 × 10/100 Mbps RJ45 port
• MAC Address Table: 2 K
• Switching Capacity: 1 Gbps
• Packet Forwarding Rate: 0.74 Mpps
• Internal Cache: 768 Kbits

---

PoE Power Supply

• PoE Standard: IEEE 802.3af, IEEE 802.3at
• PoE Power Pin: End-span: 1/2(-), 3/6(+)
• PoE Port: Ports 1 to 4
• Max. Port Power: 30 W
• PoE Power Budget: 60 W

---

Software Functions

Long Range

• Ports 1 to 4: Up to 300 m
• Performance may vary depending on camera model or cable condition.

VIP Port

• Ports 1 to 2: Data on VIP ports is prioritized when bandwidth is insufficient.

Port Isolation

• Ports 1 to 4: Enables port isolation mode to improve network security.
• Ports in an isolation group cannot communicate with each other but can communicate with ports outside the isolation group.

PoE Watchdog

• Ports 1 to 4: Automatically detects and restarts unresponsive cameras.

Link Aggregation

• Used to combine multiple physical ports into a logical port for:
  • Load balancing
  • Bandwidth expansion
  • Port protection
• Supports:
  • Static link aggregation
  • 1 aggregation group

Loop Prevention

• Prevents network loops that can disrupt communication.
• Supports:
  • 802.1D STP (Spanning Tree Protocol)
  • 802.1w RSTP (Rapid Spanning Tree Protocol)
• Disabled by default.

VLAN

• Used for network segmentation and security.
• Supports:
  • 802.1Q VLAN standard
  • Configurable VLAN ID (1-4094)
  • Trunk and Access port modes
  • Up to 32 VLANs

HPP (Hik-Partner Pro)

• Supports One-Click Activation & Remote Management, including:
  1. Displaying port rate
  2. Displaying bandwidth utilization
  3. Monitoring PoE power usage
  4. Viewing network topology
  5. Displaying alarm status
  6. Restarting ports and devices
  7. Enabling long-range mode remotely
  8. Upgrading the device remotely

---

System Maintenance

• Device Management: Web interface support
• DHCP Client: Enabled by default (dynamic IP assignment)
• Super IP: Fixed IP address (10.180.190.200) for direct access
• Management Compatibility:
  • Hik-Central Pro
  • Hik-Partner Pro (remote management)
• Additional Features:
  • Cable detection (open circuits, short circuits, network cable length)
  • 802.1ab LLDP (peer device discovery)
  • SNMP v1/v2c (third-party platform access)
  • Port mirroring (for troubleshooting)

---

Regulatory Approvals

EMC Compliance

• CE-EMC
  • EN 55032: 2015+A11: 2020
  • EN IEC 61000-3-2: 2019
  • EN 61000-3-3: 2013+A1: 2019
  • EN 50130-4: 2011+A1: 2014
  • EN 55035: 2017+A11: 2020

Safety Certifications

• CB
  • AMD1:2009, AMD2:2013
  • IEC 62368-1: 2014 (Second Edition)
• CE-LVD
  • EN 62368-1: 2014+A11: 2017

Environmental Compliance

• CE-RoHS (2011/65/EU)
• WEEE (2012/19/EU)
• REACH (Regulation (EC) No.1907/2006)
