Description
Empowered by deep learning algorithms, Hikvision AcuSense technology brings human or vehicle target classification alarms to front and back-end devices. The system can greatly reduce false alarms generated by targets other than humans or vehicles, vastly improving alarm efficiency and effectiveness.
This camera is a 2.8 – 12mm outdoor, IP67 rated bullet camera which has an IR range of 50m. Hikvision’s AcuSense Gen2 range hits a milestone in area protection and perimeter security by combining existing features such as line crossing and perimeter detection with an enhanced deep learning algorithm. AcuSense can accurately distinguish people and vehicles from other moving objects which reduces the amount of false video motion alarms by up to 95 percent. Powered by Hikvision’s Darkfighter technology, AcuSense Gen2 can deliver clear cut images even in the lowest lighting conditions of 0.003 Lux at F1.4 (4MP). AcuSense Gen2 activations will generate alarm events which will be searchable when reviewing recorded footage for specific incidents. This saves many man hours of wasted time reviewing irrelevant video trying to identify an event saving time and money for the end customers

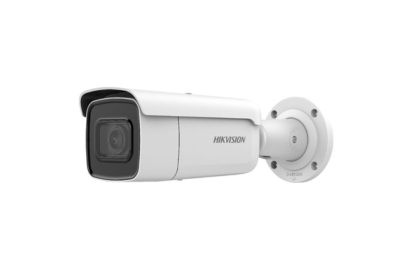

8MP 4K AcuSense Motorised Bullet Network Camera
Suitable for OUTDOOR
- 1/2″ progressive scan CMOS
- 3840 x 2160 at 20fps
- 2.8 – 12mm varifocal lens
- 120dB WDR
- Powered by Darkfighter
- H.265+, H.265, H.264+, H.264
- Built-in micro SD/SDHC/SDXC card slot, up to 256 GB
- IP67, IK10
- Human and vehicle classification alarm based on deep learning
Camera
- Image Sensor1/1.8″ Progressive Scan CMOS
- Min. IlluminationColor: 0.011 Lux @ (F1.4, AGC ON), 0 Lux with IR
- Shutter Speed1/3 s to 1/100,000 s
- Slow ShutterYes
- Wide Dynamic Range120dB
- Day & NightIR Cut Filter
- Angle AdjustmentPan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
- Focus Auto
- Lens Type 2.8 to 12 mm
- FOV Horizontal FOV: 108.1° to 45.5° , vertical FOV: 58.4° to 25.7° , diagonal FOV: 127.3° to 52.1°
- Aperture F1.4
- Lens MountΦ14
- Aperture Type Fixed
Illuminator
- IR RangeUp to 60 m
- Wavelength850nm
Video
- Max. Resolution3840 × 2160
-
Main Stream
50Hz: 20fps (3840 × 2160, 3072 × 1728), 25fps (2688 × 1520,1920 × 1080, 1280 × 720)
60Hz: 20fps (3840 × 2160, 3072 × 1728), 30fps (2688 × 1520,1920 × 1080, 1280 × 720)
-
Sub Stream
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
-
Third Stream
50Hz: 25fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
- Video CompressionMain stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeMain Profile/High Profile
- H.265 TypeMain Profile
- Region Of Interest (ROI)1 fixed region for main stream, sub-stream and third stream
Audio
- Environment Noise FilteringYes
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3
- Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
Network
- Simultaneous Live ViewUp to 6 channels
- APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS
- User/HostUp to 32 users,3 levels: Administrator, Operator and User
- Network StoragemicroSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR
- ClientiVMS-4200, Hik-Connect, Hik-Central
-
Web Browser
Plug-in required live view: IE8+, Chrome 41.0-44, Firefox30.0-51, Safari8.0-11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
- Alarm TriggerMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), scene change detection
- Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In
- Target CroppingNo
- DNR3D DNR
- Image EnhancementBLC/3D DNR/HLC
- Image SettingsSaturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
Interface
- Audio1 audio input (line in), two-core terminal block; 1 audio output(line out), two-core terminal block
- Alarm1 alarm input, 1 alarm output (max. 24 VAC/24 VDC@500 mA)
- On-Board StorageBuilt-in micro SD slot, up to 256 GB
- Hardware ResetYes
- Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
Event
- Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection (Human&Vehicle classification)
General
- Firmware VersionV5.5.60
-
Web Client Language
32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- General FunctionAnti-flicker, three streams, heartbeat, mirror, privacy masks, pixel counter
- Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
- Power Supply12 VDC ± 25%, Φ 5.5 mm coaxial power plug; reverse polarity protection; PoE (802.3at, class 4)
- Power Consumption And Current12 VDC, 1.12 A, max. 13.5 W; PoE (802.3at, 42.5 V to 57 V), 0.5 A to 0.3 A, max. 15 W
-
Camera Dimension
Camera: Φ105 × 298 mm (Φ4.1″ × 11.7\”)
With package: 385 × 190 × 180 mm (15.2 × 7.5\” × 7.1\”)
-
Camera Weight
Camera: approx. 1360 g (3 lb.)
With package: approx. 1960 g (4.3 lb.)
