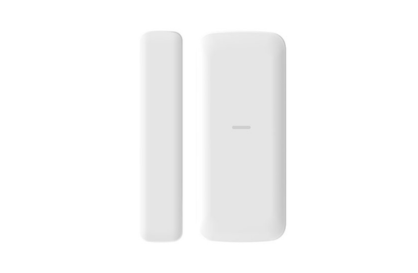

Hikvision AX PRO Series DS-PDMCS-EG2-WB Wireless Slim Magnetic Contact

Wireless Slim Magnet Detector

• Slim design for an unobtrusive (unnoticeable) installation
• Fully remote configurable through App
• Multiple enrollment methods and easy installation design
• Frequency hopping against jamming for reliable transmission

Detection Performance

• Detection Method: Opening Contact
• Detection Gap: 52 mm Max

Feature

• Digital Processing: Support
• Tamper Protection: Front; Rear
• Environment Temperature Indicator: Support
• Signal Strength Indicator: Support

Interface

• Power Switch: Power Up Enrolling
• LED Indicator: Blue (Alarm)

Transmission

• Transmission Technology: Tri-X Wireless
• Transmission Method: Two-Way RF Wireless
• Transmission Frequency: 433 MHz
• Transmission Security: AES-128 Encryption
• Transmission Range (Free Space): 1 Km
• Frequency Hopping: Support

Enrolling Method

• Enrolling Method: Power up; Remote ID; QR Code

Electrical Characteristics

• Standard Battery Life: Up to 3 years (standby time)
• Power Supply: Battery Powered
• Battery Type: CR2450 x 1
• Typical Voltage: 3V

General

• Operation Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
• Operation Humidity: 10% to 90%

Dimension

• Dimension (W x H x D):

  • 29 mm × 69 mm × 10 mm
  • 14 mm × 69 mm × 10 mm

• Weight: 38 g

• Mounting Method: Wall-mount (The device only supports wooden structure installation and cannot be installed on metal surface)

• Application Scenario: Indoor
