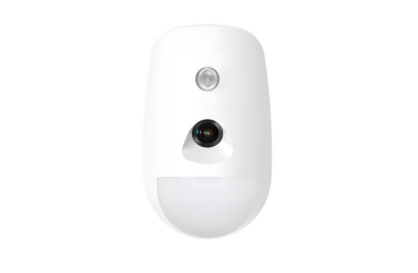

Wireless PIR-Camera Detector
-
Detection range: 12m / 85.9°
-
Up to 30KG pet immunity
-
SEC (Smart Environmental Control) - Advanced digital signal processing and 3D optics
-
Polarizing IR lens design for more uniform night illumination and excellent night shots
-
Large integrated memory buffer for image storage
-
Fully remote configurable through App
-
Multiple enrollment method and easy installation design
-
Easy replaceable battery with PCB protected
Detection Performance
- Detection Method: Passive Infrared;Video Verification
- Detection Range: 12m
- Detection Angle: 85.9°
- Detection Zones: 52
- Detectable Speed: 0.3～2m/s
- Sensitivity: High;Auto;Pet
- Pet Immunity: 30Kg
- White Light Filter: 6500lux
- Digital Temperature Compensation: Support
- Creep Zone Protection: Support
Video
- Field Angle: 88.4°(H), 54.0°(V)
- Image Type: JPEG
- Resolution: 160120; 320240; 640*480
- Fill Light: Infrared Light
- Fill Range: 12m
- Day/Night Switch: Color/Black & White
Feature
- Digital Processing: Support
- Sealed Optics: Support
- Tamper Protection: Front;Rear
- Environment Temperature Indicator: Support
- Signal Strength Indicator: Support
Interface
- Power Switch: Power Up Enrolling
- LED Indicator: Blue (Alarm)
Transmission
- Transmission Technology: CAM-X Wireless
- Transmission Method: Two-Way RF Wireless
- Transmission Frequency: 433MHz
- Transmission Security: AES-128 Encryption
- Transmission Range (Free Space): 800m
- Enrolling Method: Power up;Remote ID;QR Code
Electrical Characteristics
- Power Supply: Battery Powered
- Battery Type: CR123A × 3
- Typical Voltage: 3V
- Standard Battery Life: Up to 6 years (standby time)
General
- Operation Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
- Operation Humidity: 10% to 90%
- Dimension (WxHxD): 72.2mm × 120.5mm × 56.7mm
- Weight: 210g
- Mounting Height: 1.8 to 2.4m
- Mounting Method: Wall
- Application Scenario: Indoor
- Bracket: Optional Wall & Ceiling Accessory
