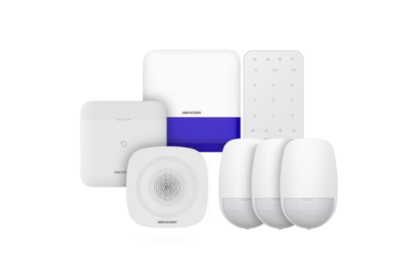

AX PRO 3 DETECTOR Kit
· DS-PWA96-M-WB Alarm Panel x 1
· DS-PK1-E-WB Wireless Keypad x 1
· DS-PDP15P-EG2-WB PIR Sensor x 3
· DS-PS1-E-WB/Blue Wireless Outdoor Sounder
· DS-PS1-I-WB Wireless Indoor Sounder
Software Features
-
Tag: 32
-
Area: 16
-
Connects up to:
- 96 wireless zones/outputs (including 48 PIRCAMs)
- 48 wireless keyfobs
- 4 repeaters
- 6 sounders
- 8 tag readers & keypads
-
Installer: 1
-
User: 30
-
Admin: 1
-
Voice Prompt: Supported
-
Loudspeaker Built In: Supported
-
Memory Log Stored: 5000
-
Programming Tools: Hik-Connect/Hik-ProConnect/Web Portal/IVMS4200/Convergence Cloud
-
Firmware Upgrade: APP/Web Portal
-
Arm Modes: Away/Stay
-
Automatic Arm/Disarm Timers: Supported
-
Forced Arming With Open Zones: Supported
-
Diagnostics Via The APP Or Web: Supported
-
ARC Protocol:
- SIA DC09 (SIA level 2, Contact ID)
- ISUP
- ISAPI (SDK)
- Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685)
- Supports video verification and remote control
-
User APP For Operating: Supported
-
Installer APP For Programming: Supported
-
Web Server For Maintenance (Offline Configuration): Supported
Hardware Features
-
RS232 Output: Supported
-
SIM Slot: Single
-
RF Transmission:
-
RF Frequency: 433 MHz
-
Wireless Security: Frequency Hopping, 128 AES Encryption
-
GPRS On Board: Supported
Electrical Characteristics
-
Power Supply: Built-in power supply
-
Battery Type: Built-in on-board Battery Li
-
Battery Life Span: 12 hours
Wireless Transmission
-
Wired Network: Supported
-
Wi-Fi Standard: Supported
Display
-
LEDs Status: Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power
General
-
Operation Temperature: -10 °C to +55 °C
-
Shell Material: Plastic
-
Dimension (WxHxD): 170.0 mm (6.7″) x 170.0 mm (6.7″) x 38.6 mm (1.5″)
-
Weight: 557.5 g (19.7 oz)
-
Color: White
Device Management
-
Keyfob: 32
-
Wireless Sounder: 4
-
Keypad: 8 (Including Tag Reader)
-
Wireless Repeater: 2
-
PIR Cam: Supported
