Description

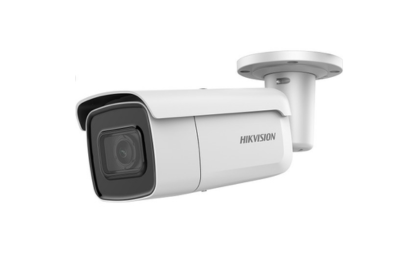

The Hikvision HIK-2CD2646G1IZS is an outdoor-ready bullet camera with audio and alarm input and output. With an IR rating of 50m, this camera is ready for any environment, day or night, where security is a must.
- Max. 2688 x 1520 resolution at 30fps
- 2.8 to 12mm lens
- H.265+, H.264+, H.265, H.264
- 120dB WDR
- 12 VDC and PoE (802.3af, class 3)
- 50m IR
- Supports on board storage, up to 128 GB
- IP66
- BLC/3D DNR/ROI
- Colour: 0.007 Lux at (F1.2, AGC ON), 0.012 Lux at (F1.6, AGC ON)
- White LED
| Camera | ||
|---|---|---|
| Image Sensor: | 1/2.7” Progressive Scan CMOS | |
| Signal System: | PAL/NTSC | |
| Min. Illumination: | Color: 0.007 Lux @ (F1.2, AGC ON), 0.01 Lux @ (F1.4, AGC ON), 0 Lux with IR | |
| Shutter time: | 1/3 s to 1/100,000 s | |
| Slow shutter: | Support | |
| Lens: | Horizontal FOV: 101° to 29°, vertical FOV: 54° to 16°, diagonal FOV: 121° to 34° | |
| Lens Mount: | φ14 | |
| Adjustment Range: | Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360° | |
| Day& Night: | IR cut filter with auto switch | |
| Wide Dynamic Range: | 120 dB | |
| Digital noise reduction: | 3D DNR | |
| Focus: | Motorized VF lens(-Z model) | |
| Compression Standard | ||
|---|---|---|
| Video Compression: | H.265/H.264/MJPEG | |
| Video bit rate: | 32Kbps~16Mbps | |
| Image | ||
|---|---|---|
| Max. Image Resolution: | 2688 × 1520 | |
| Sub Stream: | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
|
| Frame Rate: | 50Hz: 25fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 30fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
|
| Image Enhancement: | BLC/3D DNR | |
| ROI: | Support 1 fixed region for main stream and sub stream separately | |
| Day/Night Switch: | Day/Night/Auto/Schedule | |
| Network | ||
|---|---|---|
| Network Storage: | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR | |
| Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour | |
| General Function: | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering |
|
| System Compatibility: | ONVIF (Profile S, Profile G),ISAPI | |
| Intelligent | ||
|---|---|---|
| Behavior analysis: | Line crossing detection, intrusion detection, region entrance detection, region exit detection, false alarm filter by target classification | |
| Interface | ||
|---|---|---|
| Alarm: | 1 alarm input, 1 alarm output | |
| Alarm Input: | 1 | |
| Alarm Output: | 1 | |
| On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB | |
| Reset Button: | Yes | |
| Smart Feature-set | ||
|---|---|---|
| Line Crossing Detection: | Cross a pre-defined virtual line | |
| Intrusion Detection: | Enter and loiter in a pre-defined virtual region | |
| Region Entrance: | Enter a pre-defined virtual region from the outside place | |
| Region Exiting: | Exit from a pre-defined virtual region | |
| General | ||
|---|---|---|
| Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
|
| Power Consumption: | 12 VDC, 1.3 A, max. 15.5 W PoE: (802.3at, 42.5 VDC to 57 VDC), 0.4 A to 0.2 A, max. 19 W |
|
| Weather Proof: | IP67 | |
| IR Range: | Up to 50m | |
| Dimensions: | Camera: Φ 105 × 297.5 mm (Φ 4.1″ × 11.7″) | |
| Weight: | Camera: 1400 g (3.1 lb.) With package: 1750 g (3.9 lb.) |
|
