Description

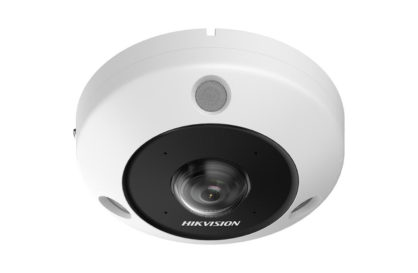

6 MP DeepinView Fisheye Network Camera
- Heatmap: based on deep learning algorithms, the camera counts people and presents an intuitive map
- Multi dewarping modes: the image can be dewarped to normal image for viewing intuitively
- Built-in mic and speaker: the camera supports two-way audio for real-time audio security monitoring and communication
- Built-in IR light: an IR range of 15 meters provides good visibility in low or even zero-light environments
- High resolution 6 MP: capturing clear images even when dewarped into 4-image PTZ mode
- Each image is clear and detailed
- Water and dust resistant (IP67) and vandal resistant (IK10)
Camera Specifications
Image Sensor
- Type: 1/1.8" Progressive Scan CMOS
- Max. Resolution: 2560 × 2560
-
Min. Illumination:
- Color: 0.01 Lux @ (F2.25, AGC ON)
- B/W: 0.005 Lux @ (F2.25, AGC ON)
- B/W: 0 Lux with IR
- Shutter Time: 1 s to 1/100,000 s
- Day & Night: IR cut filter
Lens
- Type: Fixed focal lens, 1.16 mm
- Focal Length & FOV: 1.16 mm, horizontal FOV 180°, vertical FOV 180°
- Iris Type: Fixed
- Aperture: F2.25
- Depth Of Field: 0.2 m to ∞
DORI
- D: 23.2 m
- O: 9.2 m
- R: 4.6 m
- I: 2.3 m
Illuminator
- Type: IR
- Range: Up to 15 m
- Number: 3
- Wavelength: 850 nm
- Smart Supplement Light: Yes
HEOP (High-Efficiency Open Platform)
-
Resources:
- Memory: 60 MB
- Smart RAM: 800 MB
- eMMC: 2 GB
- Computing Power: 2 TOPS
- Open Capability: HEOP 2.0 OpendevSDK
- Deep Learning Structure: Caffe, TensorFlow, PyTorch
- Programming Language: C, C++
Video Specifications
-
Main Stream:
- 50 Hz: 25 fps / 60 Hz: 30 fps
- Fisheye View: 2560 × 2560, 2048 × 2048, 1280 × 1280
- 180 Panorama View: 2048 × 1536, 1920 × 1440
- 180 Dual Channel Panorama View: 2048 × 768, 1920 × 720
- Panorama View: 2048 × 1536, 1920 × 1440
- 4PTZ View: camera 01/camera 02/camera 03/camera 04: 1024 × 768
- Fisheye + 3PTZ View: camera 01: 2048 × 2048, 1024 × 1024; camera 02/camera 03/camera 04: 1024 × 768
- 4PTZ Fusion View: 2048 × 1536, 1600 × 1200
-
Sub-Stream:
- 50 Hz: 25 fps / 60 Hz: 30 fps
- Fisheye View: 720 × 720, 480 × 480
- 180 Panorama View: 640 × 480, 320 × 240
- 180 Dual Channel Panorama View: 640 × 480, 320 × 240
- Panorama View: 640 × 360, 320 × 240
- 4PTZ View: camera 01/camera 02/camera 03/camera 04: 640 × 480, 320 × 240
- Fisheye + 3PTZ View: camera 01: 720 × 720; camera 02/camera 03/camera 04: 640 × 480, 320 × 240
-
Video Compression:
- Main stream: H.265+/H.265/H.264+/H.264
- Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate: 32 Kbps to 16 Mbps
- H.264 Type: Baseline Profile, Main Profile, High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR, VBR
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Region Of Interest (ROI): 4 fixed regions for each stream
Fisheye Display
- Mount Type: Support wall/table/ceiling mounting
- Decoding Mode: Support hardware decoding and software decoding
- Display Mode: 20 display modes in total
Audio
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
-
Audio Bit Rate:
- 64 Kbps (G.711ulaw/G.711alaw)
- 16 Kbps (G.722.1/G.726)
- 32 to 192 Kbps (MP2L2)
- 8 to 320 Kbps (MP3)
- 16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz
- Environment Noise Filtering: Yes
Network
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets, SIP
- Simultaneous Live View: Up to 20 channels
- API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
- VoIP Integration: Support for Session Initiation Protocol (SIP)
Security
-
User/Host: Up to 32 users
- 3 user levels: administrator, operator, and user
- Security Features: Password protection, HTTPS encryption, 802.1X authentication, watermark, IP address filter, security audit log, and more
Network Storage
- Storage Options: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- Memory Card: Supports up to 256 GB microSD/microSDHC/microSDXC card
Image Settings
- Adjustable Settings: Saturation, brightness, contrast, sharpness, white balance, AGC
- Day/Night Switch: Day, Night, Auto, Schedule, Alarm Trigger
- Wide Dynamic Range (WDR): Digital WDR
- Image Enhancement: BLC, HLC, 3D DNR, Distortion Correction, Defog
- Privacy Mask: 8 programmable polygon privacy masks
- Picture Overlay: LOGO picture (128 × 128, 24-bit bmp format)
Interface
- Ethernet Interface: 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot
- Built-In Microphone: Yes, 4 built-in microphones
- Built-In Speaker: Yes, 1 built-in speaker
-
Audio I/O:
- 1 input (line in), 3.5 mm connector
- 1 output (line out), 3.5 mm connector
- Alarm I/O: 2 inputs, 2 outputs
- RS-485: 1 RS-485 (Half duplex)
- Reset Key: 1 Reset Key
Event Management
- Basic Event: Motion detection, video tampering alarm, alarm input and output, exception
- Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection, audio exception detection, defocus detection, unattended baggage detection, object removal detection
- Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture
Deep Learning Functions
- People Counting: Counts people entering, exiting, and passing by separately
- Queue Management: Supports up to 8 detection regions
- Heat Map: Graphic description of visits in a configured area
- Intersection Analysis: Detects and analyzes flow in an intersection-like scene
General
-
Power:
- 12 VDC ± 20%, 1 A, max. 11.5 W
- PoE: IEEE 802.3af, Class 3, max. 12.5 W
- Material: Metal
- Dimension: Ø140.3 mm × 59.4 mm (Ø5.5" × 2.3")
- Package Dimension: 260 mm × 230 mm × 135 mm (10.2" × 9.1" × 5.3")
- Weight: Approx. 715 g (1.58 lb.)
- With Package Weight: Approx. 1206 g (2.66 lb.)
- Storage Conditions: -40 °C to 60 °C (-40 °F to 140 °F), humidity 95% or less (non-condensing)
- Startup And Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F), humidity 95% or less (non-condensing)
- Language: 33 languages including English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Function: Heartbeat, flash log, password reset via email, password protection, one-key reset, anti-banding
- Heater: Yes
- Cable Length: 0.31 m (1.02 ft.)
-
Approval:
- EMC: CE-EMC, RCM, IC, KC
- Safety: UL, CB, CE-LVD, BIS
- Environment: CE-RoHS, WEEE, Reach
- Protection: IP67, IK10
