Hikvision aims at providing a reliable, accurate and cost-effective automatic number plate recognition (ANPR) solution with its range of ANPR cameras.
Hikvision aims at providing a reliable, accurate and cost-effective automatic number plate recognition (ANPR) solution with its range of ANPR cameras.

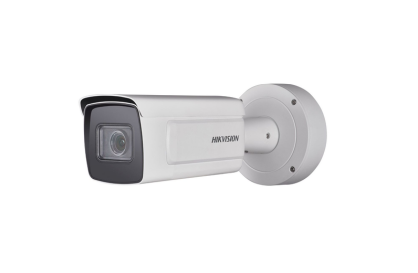

Part of Hikvision’s DeepInView range of network cameras, the HIK-2CD7A26GPIZ2 is an outdoor bullet camera that produces an exceptional 2MP high-resolution video. Powered by Darkfighter, Lightfighter and deep learning AI technology, this camera can produce clear and crisp images in environments with extreme background lighting or in ultra-low light situations for license plate recognition. Providing a combination of advanced smart features, the camera also includes 140dB true wide dynamic range (WDR), audio/alarm IO, smart video content analytics (VCA) and built-in EXIR 2.0 infrared technology providing up to 100m visibility at night. With a 8-32mm motorised varifocal lens, this camera offers great flexibility.
Hikvision aims at providing a reliable, accurate and cost-effective automatic number plate recognition (ANPR) solution with this range of ANPR cameras. The ANPR algorithm has been optimised to provide 95% plus accuracy across all Australian states and territories.
- High quality imaging with 2 MP resolution
- Excellent low-light performance via DarkFighter technology
- Clear imaging against strong back light due to LightFighter technology
- License Plate Recognition
- Efficient H.265+ compression technology to save bandwidth and storage
- Advanced streaming technology enables smooth live view and data self-correction in poor network
- 5 streams and up to 5 custom streams to meet a wide variety of applications
- 6 behavior analyses, 3 exception detection, and face detection
- Water and dust resistant and vandal proof (IP67 and IK10).
8 to 32 mm: horizontal FOV 42.5° to 13.4°, vertical FOV 23.4° to 7.7°, diagonal FOV 49° to 15.3°
| Image Sensor: |
|
1/1.8″ Progressive Scan CMOS |
| Signal System: |
|
PAL/NTSC |
| Min. Illumination: |
|
0.002 Lux @ (F1.2, AGC ON), 0.0027 Lux @ (F1.4, AGC ON), 0 Lux with IR |
| Shutter time: |
|
1s ~ 1/100,000s |
| Slow shutter: |
|
Support |
| Auto Iris: |
|
DC drive |
| Day& Night: |
|
IR cut filter with auto switch |
| Wide Dynamic Range: |
|
120 dB |
| Compression Standard |
| Video Compression: |
|
H.264+/H.264/MPEG4/MJPEG |
| H.264 code profile: |
|
Baseline Profile / Main Profile / High Profile |
| Video bit rate: |
|
32Kbps~16Mbps |
| Audio Compression: |
|
G.711/G.722.1/G.726/MP2L2 |
| Audio bit rate: |
|
64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2) |
| Triple Streams: |
|
Yes |
| Image |
| Max. Image Resolution: |
|
1920 x 1080 |
| Frame Rate: |
|
50Hz:50fps(1920×1080), 50fps(1280×960), 50fps(1280×720)
60Hz:60fps(1920×1080), 60fps(1280×960), 60fps(1280×720) |
| Third Stream: |
|
Independent with Main Stream and Sub Stream, up to
50Hz: 25fps (1920 × 1080)
60Hz: 30fps (1920 × 1080) |
| Image Enhancement: |
|
BLC/3D DNR/ROI/Defog/EIS |
| Image Settings: |
|
Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
| Distortion Correction: |
|
Support |
| Target Cropping: |
|
Support |
| Picture Overlay: |
|
LOGO picture can be overlaid on video with 128×128 24bit bmp format |
| Day/Night Switch: |
|
Auto/Schedule/Triggered by Alarm In |
| Network |
| Network Storage: |
|
NAS (Support NFS,SMB/CIFS), ANR |
| Alarm Trigger: |
|
Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception |
| Protocols: |
|
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| General Function: |
|
User Authentication, Watermark, IP address filtering |
| System Compatibility: |
|
ONVIF (Profile S, Profile G),ISAPI |
| Interface |
| Audio: |
|
1-ch 3.5 mm audio in (Mic in/Line in)/out interface |
| Audio Input: |
|
1-ch 3.5 mm audio interface, MIC IN/LINE IN |
| Audio Output: |
|
1-ch 3.5mm audio interface |
| Communication Interface: |
|
1 RJ45 10M / 100M Ethernet interface |
| Alarm: |
|
1 input, 1 output (up to DC24V 1A or AC110V 500mA ) |
| Alarm Input: |
|
1 |
| Alarm Output: |
|
1 |
| Video Input: |
|
1 RJ12 interface |
| Video Output: |
|
1Vp-p composite output (75 Ω/BNC) (-S model) |
| On-board storage: |
|
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button: |
|
Yes |
| Audio |
| Environment Noise Filtering: |
|
Support |
| Audio I/O: |
|
Support dual audio track, stereo |
| Audio Sampling Rate: |
|
16kHz / 32kHz / 44.1kHz / 48kHz |
| Smart Feature-set |
| Behavior Analysis: |
|
Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal |
| Line Crossing Detection: |
|
Cross a pre-defined virtual line |
| Region Entrance: |
|
Enter a pre-defined virtual region from the outside place |
| Region Exiting: |
|
Exit from a pre-defined virtual region |
| Unattended Baggage: |
|
Objects left over in the pre-defined region such as the baggage, purse, dangerous materials |
| Object Removal: |
|
Objects removed from the pre-defined region, such as the exhibits on display. |
| Exception Detections: |
|
Scene change detection, Sudden audio increase/decrease detection, Audio loss detection, Defocus detection |
| Recognition: |
|
Face detection recognition |
| Statistics: |
|
Object Counting (Entrance and Exit object number is accounted and showed on screen in real time) |
| General |
| Operating Conditions: |
|
-30 °C – 60 °C (-22 °F – 140 °F), Humidity 95% or less (non-condensing), -H: -40 °C – 60 °C |
| Power Supply: |
|
12 V DC ± 10%, PoE (802.3at) |
| Power Consumption: |
|
Max. 20.7 W |
| Weather Proof: |
|
IP67 |
| Dimensions: |
|
100×103.9×311.8 mm (3.94” × 4.09” × 12.28”) |
| Weight: |
|
2000 g (4.41 lbs) |
