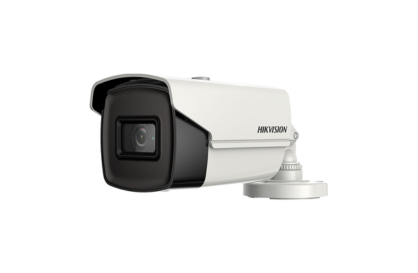

Hikvision DS-2CE16H8T-IT3F TVI4.0 5MP Outdoor Bullet Camera, 130dB WDR, 60m IR, 4 in 1, IP67, 12VDC, 2.8mm

Camera Specifications

Image Sensor

• Type: 5 MP Progressive Scan CMOS
• Max. Resolution: 2560 (H) × 1944 (V)
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.6, AGC ON)
  • 0 Lux with IR
• Shutter Time:
  • PAL: 1/25 s to 1/50,000 s
  • NTSC: 1/30 s to 1/50,000 s
• Day & Night: IR Cut Filter
• Angle Adjustment:
  • Pan: 0° to 360°
  • Tilt: 0° to 180°
  • Rotate: 0° to 360°

Signal System

• System: PAL/NTSC

Lens

• Lens Type: Fixed lens (2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm)
• Focal Length & FOV:
  • 2.8 mm: 98°
  • 3.6 mm: 78°
  • 6 mm: 48°
  • 8 mm: 37°
  • 12 mm: 23°
• Lens Mount: M12

Illuminator

• Supplement Light Type: IR
• Supplement Light Range: Up to 60 m
• Smart Supplement Light: Yes


• Image Settings: Brightness, Sharpness, Mirror, Smart IR, AGC
• Frame Rate:
  • TVI:
    • 8 MP @ 12.5 fps
    • 8 MP @ 15 fps
    • 5 MP @ 20 fps
    • 4 MP @ 25 fps
    • 4 MP @ 30 fps
    • 2 MP @ 25 fps
    • 2 MP @ 30 fps
  • CVI:
    • 8 MP @ 12.5 fps
    • 8 MP @ 15 fps
  • A

HD: - 8 MP @ 12.5 fps - 8 MP @ 15 fps

• CVBS: 960H P/N

• Day/Night Mode: Auto/Color/BW (Black and White)

• Wide Dynamic Range (WDR): ≥130 dB

• Image Enhancement: BLC, WDR

• Privacy Mask: 4 programmable privacy masks

• Noise Reduction: 3D DNR

• White Balance: Auto/Manual

Interface

• Video Output: Switchable TVI/AHD/CVI/CVBS; 1 HD analog output

Event

• Motion Detection: 4 programmable motion areas

General

• Power:
  • 12 VDC ± 25%
  • Max. 5.8 W

You are recommended to use one power adapter to supply the power for one camera.

• Material: Metal
• Dimension: 81.9 mm × 86.7 mm × 217.9 mm (3.22" × 3.41" × 8.58")
• Weight: Approx. 570 g (1.26 lb.)
• Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)

Communication

• Protocol: HIKVISION-C

Language

• Supported: English

Approval

• Protection: IP67
