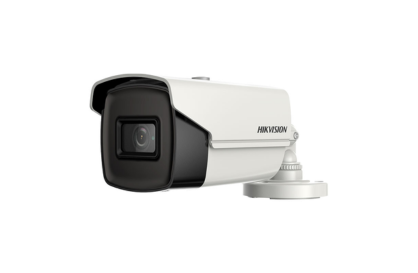

5 MP Ultra Low Light Fixed Bullet Camera
-
5 MP high performance bullet camera
-
Strong night performance, capturing images in ultra-low light down to 0.003 lux
-
Clear imaging even against strong back lighting due to 130 dB true WDR technology
-
3D DNR technology delivers clean and sharp images
-
EXIR 2.0: advanced infrared technology with 80 m IR distance
-
Water and dust resistant (IP67)
-
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
Camera
-
Image Sensor: 5 megapixel progressive scan CMOS
-
Max. Resolution: 2560 (H) × 1944 (V)
-
Min. Illumination: Color: 0.003 Lux@(F1.6, AGC ON), 0 Lux with IR
-
Shutter Time:
- PAL: 1/25 s to 1/50,000 s
- NTSC: 1/30 s to 1/50,000 s
-
Day & Night: IR cut filter
-
Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°
-
Signal System: PAL/NTSC
Lens
-
Lens Type: 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens
-
Focal Length & FOV: 78° (3.6 mm), 48° (6 mm), 37° (8 mm), 23° (12 mm)
-
Lens Mount: M12
-
Image Settings: Brightness, Sharpness, 3D DNR, Mirror, Smart IR
-
Frame Rate:
- TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps
- AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps
- CVI: 4 MP@25fps, 4 MP@30fps
- CVBS: PAL, NTSC
-
Day/Night Mode: Auto/Color/BW (Black and White)
-
Wide Dynamic Range (WDR): ≥ 130 dB
-
Image Enhancement: BLC
-
Privacy Mask: 4 programmable privacy masks
-
Noise Reduction: Level 1 to 9
-
White Balance: Auto/Manual
-
AGC: Yes
Interface
-
Video Output: 1 HD analog output, TVI/AHD/CVI/CVBS
Event
-
Motion Detection: 4 programmable areas
General
-
Material: Metal
-
Dimension: 81.9 mm × 86.7 mm × 217.9 mm (3.22" × 3.41" × 8.58")
-
Weight: Approx. 570 g (1.26 lb.)
-
Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
-
Communication: Up the coax, Protocol: HIKVISION-C (TVI output)
-
Language: English
-
Power Supply: 12 VDC ± 25%
- You are recommended to use one power adapter to supply the power for one camera.
-
Consumption: Max. 6.6 W
-
IR Range: Up to 80 m
-
Protection: IP67
