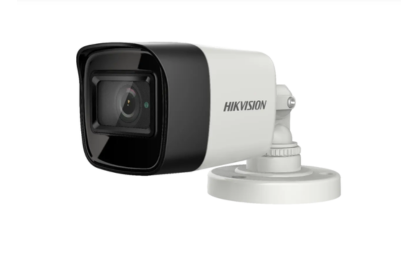

Hikvision DS-2CE16H8T-ITF TVI4.0 5MP Outdoor Mini Bullet, 130dB, WDR, 30m IR, 4 in 1, IP67, 12VDC, 2.8mm

5 MP Ultra Low Light Fixed Mini Bullet Camera

• 5 MP high performance bullet camera
• Strong night performance, capturing images in ultra-low light down to 0.003 lux
• Clear imaging even against strong back lighting due to 130 dB true WDR technology
• 3D DNR technology delivers clean and sharp images
• EXIR 2.0: advanced infrared technology with 30 m IR distance
• Water and dust resistant (IP67)
• 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

Camera

• Image Sensor
  • 5 megapixel progressive scan CMOS
• Max. Resolution
  • 2560 (H) × 1944 (V)
• Min. Illumination
  • 0.003 Lux@(F1.6, AGC ON), 0 Lux with IR
• Shutter Time
  • PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
• Day & Night
  • IR Cut Filter
• Angle Adjustment
  • Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°
• Signal System
  • PAL/NTSC

Lens

• Lens Type
  • 2.8 mm, 3.6 mm, 6 mm fixed lens
• Focal Length & FOV
  • 98° (2.8 mm), 78° (3.6 mm), 48° (6 mm)
• Lens Mount
  • M12

Illuminator

• Supplement Light Type
  • IR
• Supplement Light Range
  • Up to 30 m


• Image Settings
  • Brightness, Sharpness, Mirror, Smart IR, AGC
• Frame Rate
  • TVI: 2 MP@25 fps, 2 MP@30 fps, 4 MP@25 fps, 4 MP@30 fps, 5 MP@20 fps
  • AHD: 4 MP@25 fps, 4 MP@30 fps, 5 MP@20 fps
  • CVI: 4 MP@25 fps, 4 MP@30 fps
  • CVBS: PAL, NTSC
• Day/Night Mode
  • Auto/Color/BW (Black and White)
• Wide Dynamic Range (WDR)
  • ≥130 dB
• Image Enhancement
  • BLC
• Privacy Mask
  • 4 programmable privacy masks
• Noise Reduction
  • 3D DNR
• White Balance
  • Auto/Manual

Interface

• Video Output
  • Switchable TVI/AHD/CVI/CVBS; 1 HD analog output

Event

• Motion Detection
  • 4 programmable motion areas

General

• Power
  • 12 VDC ± 25%, max. 5.8 W
  • You are recommended to use one power adapter to supply the power for one camera.
• Material
  • Metal
• Dimension
  • 58 mm × 61 mm × 158.6 mm (2.28" × 2.40" × 6.42")
• Weight
  • Approx. 320 g (0.71 lb.)
• Operating Condition
  • -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
• Communication
  • HIKVISION-C
• Language
  • English
• Approval
  • Protection: IP67
