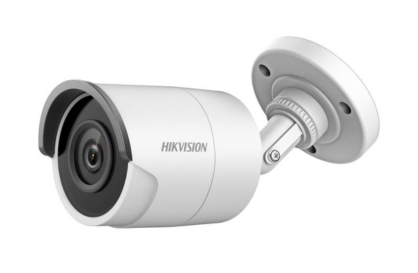

Hikvision DS-2CE17U8T-IT TVI4.0 8MP Outdoor Bullet Camera, 4K, Ultra Low Light IP67, 2.8mm, 12VDC

4K Fixed Mini Bullet Camera

• 8 MP high performance bullet camera
• Strong night performance, capturing images in ultra-low light down to 0.003 lux
• Clear imaging even against strong back lighting due to 120 dB true WDR technology
• 3D DNR technology delivers clean and sharp images
• EXIR 2.0: advanced infrared technology with 40 m IR distance
• Water and dust resistant (IP67)
• Dual outputs (HDTVI and CVBS signals output simultaneously)



Camera

• Image Sensor
  • 8.29 megapixel progressive scan CMOS
• Max. Resolution
  • 3840 (H) × 2160 (V)
• Min. Illumination
  • Color: 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR
• Shutter Time
  • PAL: 1/12.5 s to 1/10,000 s, NTSC: 1/15 s to 1/10,000 s
• Day & Night
  • IR cut filter
• Angle Adjustment
  • Pan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°
• Signal System
  • PAL/NTSC
• Slow Shutter
  • Max. 16 times

Lens

• Lens Type
  • 2.8 mm, 3.6 mm, 6 mm fixed focal lens
• Focal Length & FOV
  • 102.2° (2.8 mm), 79° (3.6 mm), 50.8° (6 mm)
• Lens Mount
  • M12


• Image Settings
  • Contrast, Sharpness, Saturation, Mirror, Defog, HLC
• Frame Rate
  • PAL: 8 MP@12.5fps, 5 MP@20fps, 4 MP@25fps, 1080p@25fps; NTSC: 8 MP@15fps, 5 MP@20fps, 4 MP@30fps, 1080p@30fps
• Day/Night Mode
  • Auto/Color/BW (Black and White)
• Wide Dynamic Range (WDR)
  • 120 dB
• Image Enhancement
  • BLC
• Privacy Mask
  • ON/OFF, 4 programmable privacy masks
• Noise Reduction
  • Level 1 to 10
• White Balance
  • Auto/Manual/Natural
• AGC
  • Support

Interface

• Video Output
  • TVI & CVBS

General

• Material
  • Metal
• Dimension
  • Ø 70 mm × 159.8 mm (Ø 2.76" × 6.29")
• Weight
  • Approx. 420 g (0.93 lb.)
• Operating Condition
  • -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
• Communication
  • Up the coax, Protocol: HIKVISION-C (TVI output)
• Language
  • English
• Power Supply
  • 12 VDC ±25%, You are recommended to use one power adapter to supply the power for one camera.
• Consumption
  • Max. 4.8 W
• IR Range
  • Up to 40 m
• Approval
  • Protection: IP67
