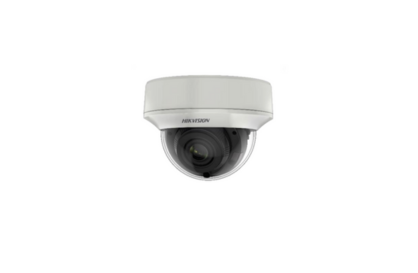

Hikvision DS-2CE56H8T-AITZF TVI4.0 5MP Indoor Dome Camera, 130dB WDR, 60m IR, 4 in 1, AC/DC, 2.7-13.5mm

5 MP Ultra Low Light Indoor Motorized Varifocal Dome Camera

• 5 MP high performance dome camera
• Strong night performance, capturing images in ultra-low light down to 0.003 lux
• Clear imaging even against strong back lighting due to 130 dB true WDR technology
• 3D DNR technology delivers clean and sharp images
• Lens focuses automatically when zooming in or out
• EXIR 2.0: advanced infrared technology with 60 m IR distance
• 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

Camera Specifications

Image Sensor

• Type: 5 MP CMOS
• Max. Resolution: 2560 (H) × 1944 (V)
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.38, AGC ON)
  • 0 Lux with IR
• Shutter Time:
  • PAL: 1/25 s to 1/50,000 s
  • NTSC: 1/30 s to 1/50,000 s
• Day & Night: IR Cut Filter
• Angle Adjustment:
  • Pan: 0° to 340°
  • Tilt: 0° to 75°
  • Rotation: 0° to 355°

Signal System

• System: PAL/NTSC

Lens

• Lens Type: Varifocal, motor-driven lens, 2.7 to 13.5 mm
• Focal Length & FOV:
  • Horizontal FOV: 92.3° to 29.3°
• Lens Mount: Φ14

Illuminator

• Supplement Light Type: IR
• Supplement Light Range: Up to 60 m
• Smart Supplement Light: Yes


• Image Settings: Brightness, Sharpness, Mirror, AGC
• Frame Rate:
  • TVI:
    • 2 MP @ 25 fps
    • 2 MP @ 30 fps
    • 4 MP @ 25 fps
    • 4 MP @ 30 fps
    • 5 MP @ 20 fps
  • AHD:
    • 4 MP @ 25 fps
    • 4 MP @ 30 fps
    • 5 MP @ 20 fps
  • CVI:
    • 4 MP @ 25 fps
    • 4 MP @ 30 fps
  • CVBS: PAL, NTSC
• Day/Night Mode: Auto/Color/BW (Black and White)
• Wide Dynamic Range (WDR): ≥130 dB
• Image Enhancement: BLC
• Privacy Mask: 4 programmable privacy masks
• Noise Reduction: 3D DNR
• White Balance: Auto/Manual

Interface

• Video Output: 1 HD analog output; Switchable TVI/AHD/CVI/CVBS

Event

• Motion Detection: 4 programmable motion areas

General

• Power:
  • 9.6 VDC to 14.4 VDC
  • 19.2 VAC to 28.8 VAC
  • Max. 8 W
• Material: Plastic
• Dimension: Φ 136 mm × 101.9 mm (Φ 5.35" × 4.01")
• Weight: Approx. 430 g (0.95 lb.)
• Operating Condition: -40 °C to 50 °C (-40 °F to 122 °F), humidity 90% or less (non-condensing)

Communication

• Protocol: HIKVISION-C

Language

• Supported: English
