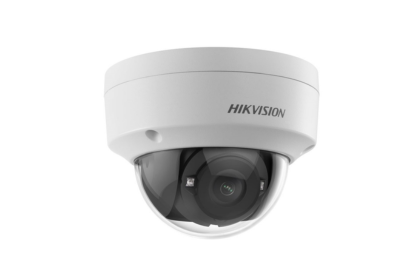

Hikvision DS-2CE57U7T-VPITF TVI4.0 8MP Outdoor Dome Camera, WDR, 30m IR, 4 in 1, IP67, 12VDC, 2.8mm

4K Ultra Low Light Vandal Fixed Dome Camera

• 8 MP high performance dome camera
• Strong night performance, capturing images in ultra-low light down to 0.003 lux
• Clear imaging even against strong back lighting due to 130 dB true WDR technology
• 3D DNR technology delivers clean and sharp images
• EXIR 2.0, advanced infrared technology with 30 m IR distance
• Water and dust resistant (IP67) and vandal proof (IK10)
• 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

Camera

• Image Sensor: 8.29 MP CMOS
• Max. Resolution: 3840 (H) × 2160 (V)
• Min. Illumination: 0.003 Lux@(F1.6, AGC ON), 0 Lux with IR
• Shutter Time:
  • PAL: 1/12.5 s to 1/50,000 s
  • NTSC: 1/15 s to 1/50,000 s
• Day & Night: ICR
• Angle Adjustment: Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°
• Signal System: PAL/NTSC

Lens

• Lens Type: 2.8 mm, 3.6 mm, 6 mm fixed lens
• Focal Length & FOV:
  • 2.8 mm: 102°
  • 3.6 mm: 79°
  • 6 mm: 51°
• Lens Mount: M16


• Image Parameters Switch: STD/HIGH-SAT
• Image Settings: Brightness, Sharpness, DNR , Mirror, Smart IR
• Frame Rate:
  • TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps
  • AHD: 8MP@12.5fps, 8MP@15fps
  • CVI: 8MP@12.5fps, 8MP@15fps
  • CVBS: P/N
• Day/Night Mode: Auto/Color/BW (Black and White)
• Wide Dynamic Range (WDR): ≥130 dB
• White Balance: Auto/Manual
• AGC: Support

Interface

• Video Output: Switchable TVI/AHD/CVI/CVBS

General

• Material: Metal
• Dimension: Φ 110.8 mm × 84.7 mm (Φ 4.4" × 3.3")
• Weight: Approx. 480 g (1.06 lb.)
• Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
• Communication: HIKVISION-C
• Language: English

Power Supply

• Power Supply: 12 VDC ± 25%
  • You are recommended to use one power adapter to supply the power for one camera.
• Consumption: Max. 4.2 W

IR Range

• IR Range: Up to 30 m

Approval Protection

• Protection: IP67, IK10
