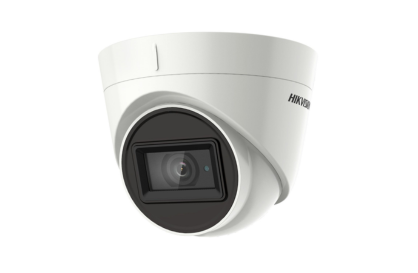

Hikvision DS-2CE78H8T-IT3F TVI4.0 5MP Outdoor Turret Camera 60m IR, 4 in 1, IP67, 12VDC, 2.8mm

5 MP Ultra Low Light Fixed Turret Camera

• 5 MP high performance turret camera
• Strong night performance, capturing images in ultra-low light down to 0.003 lux
• Clear imaging even against strong back lighting due to 130 dB true WDR technology
• 3D DNR technology delivers clean and sharp images
• EXIR 2.0: advanced infrared technology with 60 m IR distance
• Water and dust resistant (IP67)
• 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

Camera Specifications

Image Sensor

• Type: 5 MP CMOS
• Max. Resolution: 2560 (H) × 1944 (V)
• Min. Illumination:
  • Color: 0.003 Lux @ (F1.6, AGC ON)
  • 0 Lux with IR
• Shutter Time:
  • PAL: 1/25 s to 1/50,000 s
  • NTSC: 1/30 s to 1/50,000 s
• Day & Night: IR Cut Filter
• Angle Adjustment:
  • Pan: 0 to 360°
  • Tilt: 0 to 75°
  • Rotation: 0 to 360°

Signal System

• System: PAL/NTSC

Lens

• Lens Type: 2.8 mm, 3.6 mm, 6 mm, 8 mm, and 12 mm fixed focal lens
• Focal Length & FOV:
  • 2.8 mm: Horizontal FOV 98°
  • 3.6 mm: Horizontal FOV 78°
  • 6 mm: Horizontal FOV 48°
  • 8 mm: Horizontal FOV 37°
  • 12 mm: Horizontal FOV 23°
• Lens Mount: M12

Illuminator

• Supplement Light Type: IR
• Supplement Light Range: Up to 60 m
• Smart Supplement Light: Yes


• Image Settings: Brightness, Sharpness, Mirror, AGC
• Frame Rate:
  • TVI:
    • 2 MP @ 25 fps
    • 2 MP @ 30 fps
    • 4 MP @ 25 fps
    • 4 MP @ 30 fps
    • 5 MP @ 20 fps
  • AHD:
    • 4 MP @ 25 fps
    • 4 MP @ 30 fps
    • 5 MP @ 20 fps
  • CVI:
    • 4 MP @ 25 fps
    • 4 MP @ 30 fps
  • CVBS: PAL, NTSC
• Day/Night Mode: Auto/Color/BW (Black and White)
• Wide Dynamic Range (WDR): ≥130 dB
• Image Enhancement: BLC
• Privacy Mask: 4 programmable privacy masks
• Noise Reduction: 3D DNR
• White Balance: Auto/Manual

Interface

• Video Output: 1 HD analog output; Switchable TVI/AHD/CVI/CVBS

Event

• Motion Detection: 4 programmable motion areas

General

• Power:
  • 12 VDC ± 25%
  • Max. 5.8 W
  • Recommended to use one power adapter per camera
• Material:
  • Main body: Metal
  • Enclosure: Plastic
• Dimension: Φ 109.82 mm × 91.03 mm (Φ 4.32" × 3.6")
• Weight: Approx. 310 g (0.68 lb.)
• Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)

Communication

• Protocol: HIKVISION-C

Language

• Supported: English

Approval

• Protection: IP67
