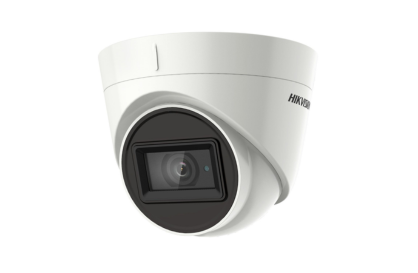

Hikvision DS-2CE78U7T-IT3F HIK-2CE78U7IT3F2 TVI4.0 8MP Outdoor Turret Camera 60m IR, 4 in 1, IP67, 12VDC, 2.8mm

4K Ultra Low Light Fixed Turret Camera

• 8 MP high performance turret camera
• Strong night performance, capturing images in ultra-low light down to 0.003 lux
• Clear imaging even against strong back lighting due to 130 dB true WDR technology
• 3D DNR technology delivers clean and sharp images
• EXIR 2.0: advanced infrared technology with 60 m IR distance
• Water and dust resistant (IP67)
• 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

Camera Specifications

Image Sensor

• Type: 8.29 MP CMOS
• Max. Resolution: 3840 (H) × 2160 (V)
• Min. Illumination:
  • 0.003 Lux @ (F1.6, AGC ON)
  • 0 Lux with IR
• Shutter Time:
  • PAL: 1/12.5 s to 1/50,000 s
  • NTSC: 1/15 s to 1/50,000 s
• Day & Night: ICR (Infrared Cut Removable)
• Angle Adjustment:
  • Pan: 0° to 360°
  • Tilt: 0° to 75°
  • Rotate: 0° to 360°

Signal System

• System: PAL/NTSC

Lens

• Lens Type: 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens
• Focal Length & FOV:
  • 2.8 mm: Horizontal FOV 102°
  • 3.6 mm: Horizontal FOV 79°
  • 6 mm: Horizontal FOV 51°
  • 8 mm: Horizontal FOV 38°
  • 12 mm: Horizontal FOV 24°
• Lens Mount: M16


• Image Parameters Switch: STD/HIGH-SAT
• Image Settings: Brightness, Sharpness, Mirror, Smart IR
• Frame Rate:
  • TVI:
    • 8 MP @ 12.5 fps
    • 8 MP @ 15 fps
    • 5 MP @ 20 fps
    • 4 MP @ 25 fps
    • 4 MP @ 30 fps
    • 1080P @ 25 fps
    • 1080P @ 30 fps
  • AHD:
    • 8 MP @ 12.5 fps
    • 8 MP @ 15 fps
  • CVI:
    • 8 MP @ 12.5 fps
    • 8 MP @ 15 fps
  • CVBS: PAL/NTSC
• Day/Night Mode: Auto/Color/BW (Black and White)
• Wide Dynamic Range (WDR): ≥130 dB
• Image Enhancement: BLC, HLC
• White Balance: Auto/Manual
• AGC: Support

Interface

• Video Output: Switchable TVI/AHD/CVI/CVBS

General

• Material:
  • Enclosure: Plastic
  • Main body: Metal
• Dimension: Φ 109.82 mm × 91.03 mm (Φ 4.32" × 3.6")
• Weight: Approx. 325 g (0.72 lb.)
• Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)

Communication

• Protocol: HIKVISION-C

Language

• Supported: English

Power Supply

• Voltage: 12 VDC ± 25%
• Consumption: Max. 4.2 W
• Recommendation: Use one power adapter per camera

IR Range

• Range: Up to 60 m

Approval

• Protection: IP67
