Description

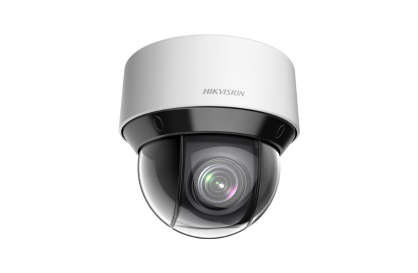

Part of Hikvision’s E PTZ series, the HIK-2DE4A425IWDE is an outdoor surface mounted PTZ with 25x optical zoom. The Hikvision E series combines a host of features in a relatively compact size PTZ. It can capture high quality 4MP images efficiently with H.265 or H.265+ compression technology and with a 360 degree endless pan range and a -5 to 90 degree tilt range, this versatile and affordable PTZ dome camera is ideal for monitoring expansive areas whilst also allowing the user to focus in on specific details for further forensic needs.
- 1/2.5″ progressive scan CMOS
- Up to 2560 x 1440 at 30fps resolution
- 25x optical zoom, 16x digital zoom
- Pan: 360 deg, Tilt: -5 deg to 90 deg (auto-flip)
- Preset, pattern scan, patrol scan
- Supports H.265+ and H.265 video compression
- 120dB WDR, 3D DNR, HLC
- Up to 50m IR
- 12VDC & PoE+ (802.3 at, class4)
- Surface mount
- IP66 rated
- Note – Smart Tracking is not available on this camera
- Lens
- FOV Horizontal field of view: 57.6° to 2.5° (wide-tele),Vertical field of view: 34.4° to 1.4° (wide-tele),Diagonal field of view: 64.5° to 2.9° (wide-tele)
- Zoom Speed Approx. 3.2 s (optical lens, wide-tele)
- Working Distance 10 mm to 1500 mm (wide-tele)
- Aperture Range F1.6 to F3.5
- Focal Length 4.8 mm to 120 mm, 25× optical
- Image
- Image Enhancement HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus
- Sub-Stream 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
- Max. Resolution 2560 × 1440
- Main Stream 50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720),50fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720),60fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Third Stream 50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Network
- Network Storage Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
- Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
- API Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform
- Simultaneous Live ViewUp to 20 channels
- User/HostUp to 32 users. ,3 levels: Administrator, Operator and User
- Client iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
- Web Browser IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
- Security Measures User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
- Alarm Linkage Alarm actions, such as Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
- Interface
- Alarm Output 2-ch alarm input
- Alarm Input 2-ch alarm input
- Audio Input 1-ch audio input
- Audio Output 1-ch audio output
- Network Interface 1 RJ45 10 M/100 M Ethernet Interface; PoE+ (802.3 at, class4)
- Compression Standard
- H.264+Support
- H.265+Support
- H.264 TypeBaseline Profile/Main Profile/High Profile
- Video Compression Main Stream: H.265+/H.265/H.264+/H.264,Sub-Stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG
- H.265 Type Main Profile
- Video Bitrate 32 Kbps to 16384 Kbps
- Audio Compression G.711alaw/G.711ulaw/G.722/G.726/MP2L2/PCM
- Audio Bitrate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps (MP2L2)
- SVC Support
- Camera Module
- AGC Auto/Manual
- Image Sensor 1/2.5″ progressive scan CMOS
- Min. Illumination Color: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001 Lux @(F1.6, AGC ON),0 Lux with IR
- White Balance Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
- Shutter Time 1/1 s to 1/30,000 s
- Day & Night IR Cut Filter
- Digital Zoom 16×
- Privacy Mask 24 programmable privacy masks
- Focus Mode Auto/Semi-automatic/Manual
- WDR 120 dB WDR
- Supplement Light
- IR Distance 50 m
- Smart IR Support
- PTZ
- Movement Range (Pan) 360° endless
- Pan Speed Configurable, from 0.1°/s to 300°/s,Preset Speed: 350°/s
- Movement Range (Tilt)From -5° to 90° (auto-flip)
- Tilt Speed Configurable, from 0.1°/s to 160°/s,Preset Speed: 200°/s
- Proportional Zoom Support
- Presets 300
- Patrol Scan 8 patrols, up to 32 presets for each patrol
- Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
- Power-Off Memor ySupport
- Park Action Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
- PTZ Status Display Support
- Preset Freezing Support
- Scheduled Task Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
- General
- Material ADC12, PC, PC+ABS, SUS304, POM
- Dimensions Φ 169 mm × 161 mm (Φ 6.65″ × 6.34″)
- Weight Approx. 2.45 kg (5.40 lb)
- Protection Level IP66 Standard, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
- Power 12 VDC, 3.33 A & PoE (802.3 at), 42.5 to 57 VDC, 0.6 A, class4 Max.:18 W, including max. 5W for IR
- Working Temperature-30°C to 65°C (-22°F to 149°F)
- Working Humidity≤ 90%
- Installation Variable installation methods optional, including ceiling mounting (default), in-ceiling mounting, pendant mounting and wall mounting
