Description
Special Order (3-4 Waiting Time)

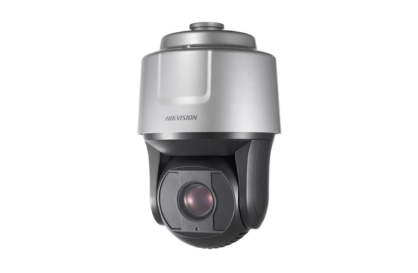

Hikvision is leading the industry with innovative video surveillance products and solutions, with the introduction of the DarkFighter X series. Using cutting-edge technology, it delivers the next level of performance for night surveillance. The technology can provide colourful, sharp images right down to the lowest light levels of 0.001 lux. The DarkFighter X Series takes inspiration from the way the human eye works. Eyes use different cells to collect colour and brightness information, which the brain then merges. The DarkFighterX cameras take information from an IR sensor (for brightness) and information from a visible light sensor (for colour) and combines them to provide the best of both worlds, one bright full-colour image. The DarkFighterX series includes a PTZ and bullet camera both come with optical defog, 25x optical zoom, 2MP resolution and smart detection. They also boast the H.265+ codec and are weatherproof to IP66 standard.
- Dual sensors – 2 x 1/2.8″ CMOS
- 2 megapixel – 1080P @25fps/30fps
- Colour: 0.001lux/F1.5, B/W: 0.0001lux/F1.5
- H.265+/H.265/H.264+/H.264/MJPEG
- 200m infrared
- NO WIPER
- 120dB wide dynamic range
- Pan range: 360 degrees endless
- Tilt range: -20 degrees ~90degrees(Auto Flip)
- Pan speed: 0.1degrees~160degrees/s
- Tilt speed: 0.1degrees~120degrees/s
- Optical zoom:25x, focus:4.8-120mm
- Supports SD/SDXC card up to 128GB
- IP Rating: IP66, IK10
- Power: Hi-PoE/24VAC
| Camera | ||
|---|---|---|
| Image Sensor: | 2× 1/2.8″ progressive scan CMOS | |
| Effective Pixels: | 1920(H)x1080(V) | |
| Signal System: | PAL/NTSC | |
| Minimum Illumination: | Color: 0.0004 Lux @(F1.5, AGC ON) B/W: 0.0001 Lux @(F1.5, AGC ON) 0 Lux with IR |
|
| AGC: | Auto/Manual | |
| BLC: | ON/OFF | |
| HLC: | Support | |
| Smart defog: | Support | |
| WDR: | 120dB | |
| Shutter Time: | 50Hz: 1~1/30,000s; 60Hz: 1~1/30,000s | |
| Day& Night: | ICR | |
| Digital Zoom: | 16X | |
| Privacy Mask: | 24 programmable privacy masks | |
| Auto Focus: | Auto / Semi-automatic / Manual | |
| Rapid Focus: | Yes | |
| Lens | ||
|---|---|---|
| Focal Length: | 4.8 mm to 120 mm, 25× Optical | |
| Zoom Speed: | Approx. 4.4 s (optical lens, wide-tele) | |
| Field of View: | Horizontal field of view: 58.2° to 3.2° (wide-tele) Vertical field of view: 32.7° to 1.8° (wide-tele) Diagonal field of view: 66.8° to 3.7° (wide-tele) |
|
| Minimum Working Distance: | 10-1500mm(Wide-Tele) | |
| Aperture Range: | F1.5~F3.5 | |
| Pan & Tilt | ||
|---|---|---|
| Pan Range: | 360°endless | |
| Pan Speed: | Configurable, from 0.1°/s to 210°/s, Preset Speed: 280°/s | |
| Tilt Range: | -20°~90°(Auto Flip) | |
| Tilt Speed: | Configurable, from 0.1°/s to 150°/s, Preset Speed: 250°/s | |
| Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples | |
| Number of Preset: | 300 | |
| Patrol: | 8 patrols, up to 32 presets per patrol | |
| Pattern: | 4 patterns, with the recording time not less than 10 minutes per pattern | |
| Power-off Memory: | Support | |
| Park Action: | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan | |
| PTZ Position Display: | ON/OFF | |
| Smart-tracking: | Manual Tracking, Auto Tracking (support tracking specified target types such as human and vehicle), Event Tracking | |
| Wiper: | Optional | |
| Infrared | ||
|---|---|---|
| IR Distance: | 200m | |
| IR irradiation angle: | Adjustable by zoom | |
| Alarm | ||
|---|---|---|
| Alarm Input: | 7 Inputs | |
| Alarm Output: | 2 | |
| Alarm Linkage: | Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client, Send Email, Upload to FTP, Trigger Channel | |
| Network | ||
|---|---|---|
| Ethernet: | 10Base -T, /100Base-TX, RJ45 Connector | |
| Main Stream: | 50Hz: 25fps(1920×1080), 25fps(1280×960), 25fps (1280×720) 60Hz: 30fps(1920×1080), 30fps(1280×960), 30fps (1280×720) |
|
| Sub Stream: | 50Hz: 25fps(704×576, 640×480,352×288); 60Hz: 30fps(704×480, 640×480,352×240) | |
| Third Stream: | 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480, 320 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480, 320 × 240) |
|
| Video Compression: | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG |
|
| ROI encoding: | Eight fixed region for each stream | |
| Audio Compression: | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM | |
| Audio Mode: | OFF/Audio input/Audio output | |
| Simultaneous Live View: | Up to 20 channels | |
| Three-Stream: | Support | |
| Storage: | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB | |
| Security Measures: | User authentication (ID and PW), Host authentication (MAC address) IP address filtering |
|
| Client GUI | ||
|---|---|---|
| Camera Control: | Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode | |
| Date & Time Display: | Time: Week: Date, 6 formats on the Client | |
| Client: | Support iVMS-4200 | |
| Web Browser: | IE 7+, Chrome 18 – 42, Firefox 5.0 +, Safari 5.02 + | |
| General | ||
|---|---|---|
| RS-485 Protocols: | HIKVISION, Pelco-P, Pelco-D, self-adaptive | |
| Power Consumption: | 24 V, 5.0 A, 50/60Hz, AC (Max. 68 W) , Hi-PoE, 42.5 to 57 V, 1.41 A (Max. 50 W) | |
| Working Temperature/Humidity: | Temperature: -40°C to 70°C (-40°F to 158°F) Humidity: ≤ 95% |
|
| Dimensions: | Φ 266.6 mm × 437 mm (Φ 10.50″ × 17.20″) | |
| Weight (approx.): | 8kg (approx.17.64lb) | |
