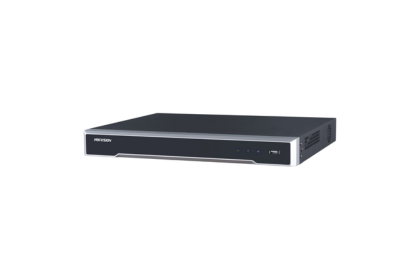

Hikvision DS-7616NI-M2/16P 16CH Ultra Series NVR inc 4TB HDD

Hikvision DS-7616NI-M2/16P Ultra Series
16CH 1U 16 PoE 8K NVR
Hikvision DS-7616NI-M2/16P 16CH Ultra Series NVR inc 4TB HDD 256Mbps Bit Rate Input Max(up to 16-ch IP video),16x4MP decoding capability,HDMI up to 8K, 2 SATA Interfaces, 16 independent PoE network interfaces, alarm I/O: 4/1, 380 1U case

H.265+/H.265/H.264+/H.264 video formats
Up to 16-ch IP camera inputs
Up to 16-ch@4MP decoding capacity
Up to 256 Mbps incoming bandwidth
Inc 4TB HDD

• Datasheet-of-DS-7616NI-M2_16P_V4.63.010

Video And Audio

• IP Video Input

  16-ch

  Up to 32 MP resolution

  *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.

• Incoming Bandwidth256 Mbps
• Outgoing Bandwidth256 Mbps
• HDMI Output8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA Output1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Video Output ModeHDMI/VGA independent output
• CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding

• Decoding FormatH.265+/H.265/H.264+/H.264
• Recording Resolution

  32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF

  *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.

• Synchronous Playback16-ch
• Decoding Capability2-ch@32 MP (30 fps)/2-ch@24 MP (30 fps)/4-ch@12 MP (20 fps)/8-ch@8 MP (25 fps)/16-ch@4 MP (30 fps)
• Dual-Stream RecordingSupport
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2

Network

• Remote Connection128
• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE

• Interface16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power≤ 200 W
• StandardIEEE 802.3 af/at

Auxiliary Interface

• SATA 2 SATA interfaces
• CapacityUp to 14 TB capacity for each HDD
• Alarm In/Out4/1
• USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0

General

• Power Supply100 to 240 VAC, 50 to 60 Hz
• Consumption≤ 15 W (without HDD and PoE off)
• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10% to 90%
• Dimension (W × D × H)385 × 315× 52 mm (15.2″ × 12.4″ × 2.0″)
• ≤ 3 kg (without HDD, 2.2 lb.)

Certification

• FCCPart 15 Subpart B, ANSI C63.4-2014
• CE

  EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201

  9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
