Description

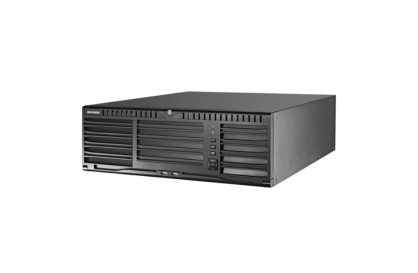

128-ch 3U 4K Super NVR
- Up to 128 channel IP cameras can be connected
- Up to 576 Mbps high incoming bandwidth ensures IP cameras can be connected
- 2 HDMI (different source) and 1 VGA interfaces16 HDD can be used for continuous video recording
- 16 HDD can be used for continuous video recording
- Supports some specialist cameras, including people counting camera/ANPR (automatic number plate recognition) camera/fisheye camera
- Advanced streaming technology enables smooth live view in poor network conditions
- Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage, effectively avoids data loss risks
Video and Audio
-
IP Video Input
- 128 channels
-
Incoming Bandwidth
- 576 Mbps
-
Outgoing Bandwidth
- 512 Mbps
-
Incoming Bandwidth (RAID Mode)
- 576 Mbps
-
Outgoing Bandwidth (RAID Mode)
- 512 Mbps
-
TLS Outgoing Bandwidth
- 128 Mbps, or 64 Mbps (when RAID is enabled)
-
HDMI Output
- Two independent HDMI outputs of 4K resolution
- Resolutions:
- 4K (4096 × 2160)
- 4K (3840 × 2160)/30Hz
- 2K (2560 × 1440)/60Hz
- 1080p (1920 × 1080)/60Hz
- UXGA (1600 × 1200)/60Hz
- SXGA (1280 × 1024)/60Hz
- 720p (1280 × 720)/60Hz
- XGA (1024 × 768)/60Hz
-
VGA Output
- 1 channel
- Resolutions:
- 1080p (1920 × 1080)/60Hz
- UXGA (1600 × 1200)/60Hz
- SXGA (1280 × 1024)/60Hz
- 720p (1280 × 720)/60Hz
- XGA (1024 × 768)/60Hz
-
LCD Output
- Optional: One 7 inch LCD
-
Audio Output
- 1 channel, RCA (2.0 Vp-p, 1 KΩ)
-
Two-Way Audio
- 1 channel, RCA (2.0 Vp-p, 1 KΩ)
Decoding
-
Decoding Format
- H.265, H.265+, H.264, H.264+, MPEG4, MJPEG (for Hikvision IP camera only)
-
Recording Resolution
- 32 MP, 24 MP, 12 MP, 8 MP, 7 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
- 32 MP and 24 MP is only available for channel 1 to 4 when ultra HD resolution mode is enabled.
-
Synchronous Playback
- Up to 16 channels
-
Decoding Capability
- 1 channel @ 32 MP (8160 × 3616, 30 fps)
- 5 channels @ 8 MP (30 fps)
- 10 channels @ 4 MP (30 fps)
- 20 channels @ 1080p (30 fps)
- 40 channels @ 720p (30 fps)
- The length or width of camera resolution (each track) cannot exceed 4096 pixels.
Network
-
Network Protocols
- IPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS
-
Camera Access Protocols
- HIKVISION, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANON, HUNT, ONVIF (Version 2.5), PANASONIC, PELCO, RTSP, SAMSUNG, SONY, VIVOTEK, ZAVIO
-
Network Interface
- 4 RJ45 10M/100M/1000M self-adaptive Ethernet interfaces
PoE
-
Interface
- 16 SATA interfaces supporting hot-plug
RAID
-
RAID Type
- RAID0, RAID1, RAID5, RAID6, RAID10
Auxiliary Interface
-
SATA
- 2 × mini SAS interface (optional)
-
ESATA
- 1 × eSATA interface
-
Capacity
- Up to 10 TB for each HDD
-
Serial Interface
- RS-232, RS-485, Keyboard
-
USB Interface
- Front Panel: 2 × USB 2.0
- Rear Panel: 2 × USB 3.0
-
Alarm In/Out
- 16/8
-
Extension Board
- One extension board is supported with four 10M/100M/1000M optical interfaces (1.25 Gbps SFP module)
- Eight RS-485 interfaces
- Alarm interface with 32 alarm inputs and 16 alarm outputs
General
-
Power Supply
- 100 to 240 VAC, 50 to 60Hz, 5 A
-
Consumption
- ≤ 140 W
-
Working Temperature
- 0 °C to +50 °C (32 °F to 122 °F)
-
Working Humidity
- 10% to 90%
-
Dimensions (W × D × H)
- 442 × 494 × 146 mm (17.4 × 19.4 × 5.7 inches)
-
Weight
- ≤ 16 kg (35.3 lb)
