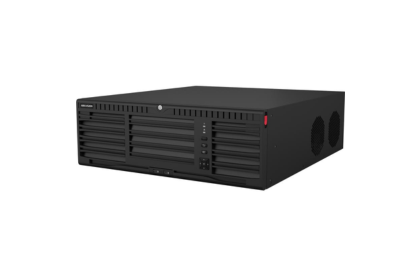

Hikvision DS-9632NI-M16 32ch M-Series NVR, 320Mbps, 8K, VGA/HDMI, 16 Bay, 3RU, No HDD

32-ch 3U 4K NVR

• Up to 32-ch IP camera inputs
• Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP/32-ch@1080p decoding capacity
• Up to 320 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth
• 2 HDMI (different source) and 2 VGA (different source) interfaces, 8K or dual 4K video outputs
• Supports special cameras, including people counting camera, ANPR (automatic number plate recognition) camera, and fisheye camera
• Advanced streaming technology enables smooth live view in poor network conditions
• Supports RAID 0, 1, 5, 6, 10 and N+M hot spare for even more reliable data storage, effectively avoids data loss risks


Video and Audio

• IP Video Input

  • 32 channels
  • Incoming Bandwidth: 320 Mbps
  • Outgoing Bandwidth: 400 Mbps

• HDMI 1 Output

  • Resolutions: 8K (7680 × 4320)/30 Hz, 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz
  • When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.

• HDMI 2 Output

  • Resolutions: 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz

• VGA 1 Output

  • Resolution: 1920 × 1080/60 Hz

• VGA 2 Output

  • Resolution: 1920 × 1080/60 Hz

• Video Output Mode

  • HDMI 1 and VGA 1 provide simultaneous video output and work as the main output
  • HDMI 2 and VGA 2 provide simultaneous video output and work as the auxiliary output

• CVBS Output

  • 1 channel, BNC (1.0 Vp-p, 75 Ω)
  • Resolution: PAL: 704 × 576, NTSC: 704 × 480

• Audio Input

  • 1 channel, RCA (2.0 Vp-p, 1 KΩ)

• Audio Output

  • 2 channels, RCA (Linear, 1 KΩ)

• Two-Way Audio

  • 1 channel, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding

• Decoding Format

  • H.265+, H.265, H.264+, H.264

• Recording Resolution

  • 32 MP, 24 MP, 12 MP, 8 MP, 7 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF

• Synchronous Playback

  • 16 channels

• Decoding Capability

  • 2 channels @ 32 MP (30 fps) + 2 channels @ 8 MP (30 fps)
  • 10 channels @ 8 MP (30 fps)
  • 20 channels @ 4 MP (30 fps)
  • 40 channels @ 1080p (30 fps)

• Audio Compression

  • G.711ulaw, G.711alaw, G.722, G.726, AAC, MP2L2, PCM

Network

• Network Protocols

  • TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

• Network Interface

  • 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces

RAID

• RAID Type
  • RAID0, RAID1, RAID5, RAID6, RAID10

Auxiliary Interface

• Serial Interface

  • 1 RS-485 (full-duplex), 1 RS-232

• SATA

  • 16 SATA interfaces supporting hot-plug

• ESATA

  • 1 eSATA interface

• Capacity

  • Up to 16 TB for each disk

• Alarm In/Out

  • 16/9

• USB Interface

  • Front panel: 2 × USB 2.0
  • Rear panel: 2 × USB 3.0

• Ctrl 12V

  • Controllable 12 VDC, 1 A power output for external alarm device
  • The power will be turned on when the alarm output is triggered. The Ctrl 12V power is controlled by alarm output 9.

• DC 12V

  • 12 VDC, 1 A power output

General

• Power Supply

  • 100 to 240 VAC, 50 to 60 Hz

• Consumption

  • ≤ 50 W (without HDD)

• Working Temperature

  • -10 °C to 55 °C (14 °F to 131 °F)

• Working Humidity

  • 10% to 90%

• Chassis

  • 3U chassis

• Dimensions (W × D × H)

  • 445 × 496 × 150 mm (17.5" × 19.5" × 5.9")

• Weight

  • ≤ 12.5 kg (without HDD, 27.6 lb.)

Certification

• Obtained Certification

  • CE, FCC

• CE

  • EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
