Description

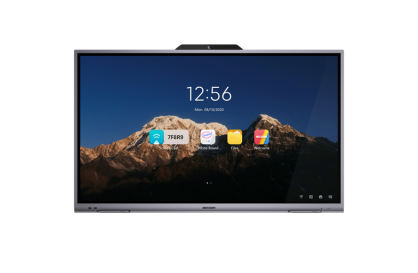

65-inch 4K Interactive Display W/ Camera and Microphone array
- 4K Display Presenting More Details: 4K resolution improves the image details with the features of being anti-glared, fingerprint-resistant, and strong light-blocked.
- Instant and Ultra-Fine Writing: Provides smooth writing with the touch precision of 1 mm, and smart stroke optimization makes every stroke more real.
- One-touch Sharing for Meeting: Annotation sharing by QR code or e-mail ensures more concentrations and higher efficiency.
- Free Annotating Without Boundaries: Built-in application enables free annotations and instant saving on any interfaces. The whiteboard system can register up to 20 simultaneous touch points, showing different opinions at the same time.
- Wireless Screen Mirroring: Wireless screen mirroring through laptop, desktop PC, mobile phone, and tablet with no need to connect cables. Convenient solution comparison thanks to screen split by half and by quarter.
- Corporative Working Without Distance Limit: Video conferencing available through relative software and hardware, making remote cooperation achievable. Multi-screen interaction in large-scale scenarios with synchronized displaying of writing.
- Built-in 8 MP camera ensures clearer images, and 6 microphone arrays present you an immersive experience.
Product Model
Product Model: DS-D5B65RB/B
Display
- Screen Size: 65 inch LED Backlight
- Backlight: DLED
- Pixel Pitch: 0.124 (H) × 0.372 (V) mm
- Resolution: 3840 × 2160 @ 60 Hz
- Brightness: 350 cd/m²
- Color Depth: 10 bit
- Contrast Ratio: 1200 : 1 (Typ.)
- Response Time: 6 ms
- Color Gamut: 90% NTSC (CIE1931) (Typ.)
- Refresh Rate: 60 Hz
- Viewing Angle: 178° (H) / 178° (V)
Touch
- Type: Infrared touch screen
- Glass: Smooth tempered glass being anti-glare and explosion-proof
- Touch Point: 20 point multi-touch
- Touch Response Time: ＜ 10 ms
- Touch Precision: ± 1 mm (≥ 90% touching area)
- Optical Bonding: Support
Built-In System
- Operation System: Android 8.0
- Processor: 4-core A73 × 2 + A53 × 2, 1.5 GHz
- Memory: 3 GB
- Built-In Storage: 32 GB
- NIC: Built-in 100 Mbps NIC, supporting routing
Camera
- Pixel: 8 MP
- Camera Function: Smart switch between Android system and OPS
- Field Angle: 100° (diagonal), 90° (horizontal), 66° (vertical)
- Distortion: ≤1%
- Camera Resolution Ratio: Up to 4K
Microphone
- Specification: Omni-directional 6-array layout
- Mic Function: Echo reduction and smart noise-cancellation
- Voice Distance: 8 m
- Sampling Rate: 32 K
- Mic Sampling Rate: 16 bit
Internal Function
- Loudspeaker: Built-in 2 × 16 W loudspeaker
- Bluetooth: Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.0 and previous version.
Interface
- Video & Audio Input: HDMI IN × 2, MAX 4K @ 60 Hz, LINE IN × 1
- Video & Audio Output: HDMI OUT × 1, MAX 4K @ 60 Hz, LINE OUT × 1
- Control Interface: RS-232 × 1
- Network Interface: RJ45 (100 Mbps port) × 2
- Data Transmission Interface: USB on front panel × 2, USB on rear panel × 2, touch USB × 1
Power
- Power Consumption: ≤ 250 W (full load)
- Standby Consumption: 0.5 W
- Power: 100 to 240 VAC, 50/60 Hz
General
- Product Dimensions: 1507 × 930 × 86 mm (59.3'' × 36.6'' × 3.4'')
- Package Dimensions (W × H × D): 1687 × 1061 × 234 mm (66.4'' × 41.8'' × 9.2'')
- Net Weight: 40.36 kg (88.98 lb.)
- Gross Weight: 50.69 kg (111.75 lb.)
Working Environment
- Working Temperature: 0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
- Working Humidity: 10% to 90% RH
