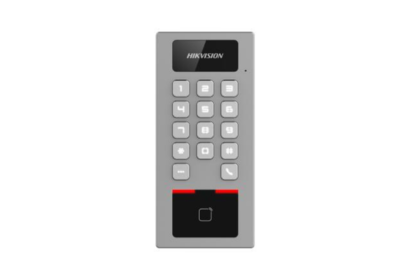

Access Control Terminal
-
Manage access control and intercom functions in one device
-
IP65 & IK09 protections, as well as increased stability with zinc alloy materials
-
Supports multiple authentication methods (card, PIN, etc.)
-
Remote control via the Hik-Connect mobile app
-
Connects to external access controller via Wiegand protocol
-
Intercom via SIP protocol. Supported SIP server: Brekeke, miniSipServer,FreePBX, Asterisk, 3CX, ELASTIX, and PBX ware
-
RS-485 communication for connecting external card reader and calling elevator
-
Supports AP mode
-
Press calling button to call one of the following objects: management center, indoor station, specified indoor station, or Hik-Connect App
-
Supports up to 256 GB SD card memory
-
Supports PIN settings under platform mode and local mode
-
Setting the priority of wired network and wireless network is available
System Specifications
Operating System
Video
-
Video Compression Standard: H.264 and H.265
Network
-
Wired Network: 10 M/100 M self-adaptive
-
Wi-Fi: Support
-
Interfaces:
-
Network Interface: 1
-
Lock Control: 1
-
Exit Button: 1
-
Door Contact Input: 1
-
Alarm Input: 1
-
Alarm Output: 1
-
TAMPER: 1
-
RS-485: 1
-
Wiegand: 1 (output)
-
SD Card Slot: 1
Capacity
-
Card Capacity: 100,000
-
Event Capacity: 300,000
Authentication
-
Card Type: M1 card; DESfire card
-
Card Reading Distance: 0 ~ 3 cm
General
-
Power Supply: 1 A (12 VDC to 24 VDC)
-
Power Consumption: ≤ 12 W
-
Working Temperature: -40 ℃ ~ +70 ℃ (-40 °F ~ +158 °F)
-
Protective Level: IK09, IP65
-
Language: Arabic, English, French, Indonesian, Italian, Portuguese (Brazil), Russian, Spanish (Europe), Thai, Ukrainian, Vietnamese, German, Polish, Hungarian, Czech, Romanian, Bulgarian, Croatian, Serbian, Greek, Slovak, Portuguese, Dutch, Turkish
Function
-
Two-Way Audio: Support
-
Hik-Connect: Support
