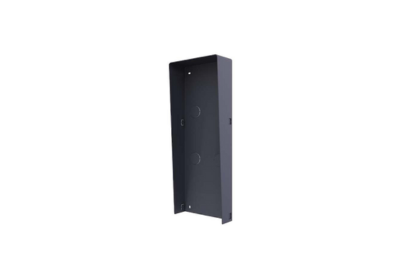

Hikvision DS-KABD8003-RS3 2nd Gen Door Shroud to suit DS-KD-ACW3

Rain Shield of Module Door Station

• Convenient design available for the 3 module surface mounting of the modular door station (DS-KD8003-IME1 or DS-KD8003-IME2)
• Material: SECC

General Specifications

Environmental Parameters

• Working Temperature: -40° C to +60° C (-40° F to 140° F)
• Working Humidity: 10% to 95%

Physical Parameters

• Weight: 702.3g
• Dimensions (W × H × D): 325.8 mm × 116.4 mm × 58 mm (12.83" × 4.58" × 2.28")

Installation Instructions

1. Prepare the Installation Area

   • Paste Installation Sticker 1 onto the wall, ensuring it is level using a gradienter.
   • Drill 4 holes aligned with the screw holes on the sticker. Recommended hole size: 6 mm (diameter) × 25 mm (depth).

2. Insert Expansion Sleeves and Mount Frame

   • Remove the sticker and insert expansion sleeves into the screw holes.
   • Fix the mounting frame and protective shield onto the wall using 4 expansion bolts.
   • Thread module-connecting lines through the thread holes of the frame.
   • Pass the main unit connecting lines through the thread hole to the top grid.

3. Connect the Cables

   • Connect the cables and module-connecting line 1 to the corresponding interfaces of the main unit, then place the main unit into the upper grid.
   • Connect the other end of the module-connecting line 1 to the input interface of the sub module.
   • Connect two sub modules using module-connecting line 2.
   • Organize the lines with the provided cable tie.

4. Install the Modules

   • Insert the modules into the frame after wiring. Ensure the main unit is placed in the top grid.
   • Use the hexagon wrench included in the package to fix the cover onto the frame.

Material

• Material: SECC (Steel, Electrogalvanized, Cold-rolled, Coil)
