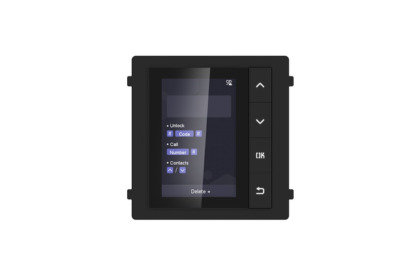

Hikvision DS-KD-DIS Gen2 Intercom, Door Station Name Scroll Module

KD8 Series Pro Modular Door Station

• Display module of modular door station
• 3.5-inch LCD screen with rich information display: Dial number, pin code unlock, contact list
• Store up to 2000 contacts
• IP65 protection level
• Backlight compensation behind the module
• Support multiple languages

System Parameters

Operating System

• Operating System: Embedded Linux operation system
• ROM: 8 MB
• RAM: 64 MB
• CPU: Embedded MCU Processor

Display Parameters

• Screen Size: 3.5-inch
• Operation Method: Physical buttons
• Type: TFT LCD screen
• Resolution: 320 × 480p
• Brightness: 250 cd/m²

Video Parameters

• Lens: /
• Resolution: /
• FOV: /
• WDR: /
• Supplement Light: /
• Video Compression Standard: /

Audio Parameters

• Audio Compression Standard: /
• Audio Input: /
• Audio Output: /
• Audio Compression Bitrate: /
• Audio Quality: /
• Volume Adjustment: /

Capacity

• User Capacity: /
• Face Capacity: /
• Card Capacity: /
• Linked Network Camera Capacity: /

Network Parameters

• Communication Protocol: /
• Wired Network: /
• Wi-Fi Standard: /
• Bluetooth Version: /
• 3G/4G Standard: /

Device Interfaces

• Alarm Input: /
• Network Interface: /
• TAMPER: /
• Exit Button: /
• RS-485: 1
• USB: /
• Wiegand: /
• TF Card: /
• Alarm Output: /
• Lock Control: /
• Door Contact Input: /
• Power Interface: 1

General

• Button: 4 (Up, Down, OK, Back)
• Installation: Flush mounting, surface mounting
• Indicator: /
• Weight: /
• Protective Level: IP65
• Working Temperature: 20° C to +60° C (-4° F to 140° F)
• Working Humidity: 10% to 95%
• Dimensions: 98.5 mm × 100 mm × 34.2 mm (3.87" × 3.95" × 1.33")
• Battery: /
• Application Environment: Outdoor
• Power Consumption: 2.5 W
