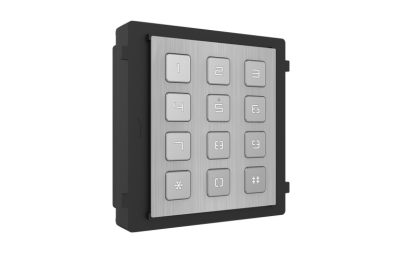

Hikvision DS-KD-KP/S 2nd Gen Intercom Keypad Module, IP65, 12VDC, Stainless Steel

KD8 Series Pro Modular Door Station

• Keypad module of modular door station
• Supporting input pin code to open door, call indoor station
• IP65 and IK07 higher protection level
• Backlight compensation behind the keypad buttons
• Easy to use and extend
• Stainless Steel high quality material
• Data Sheet

General

• Button: 12
• Installation: Flush mounting, surface mounting
• Indicator: /
• Weight:
  • Net weight: 190 g
  • Gross weight: 438 g
• Protective Level: IP65, IK07
• Working Temperature: -40 °C to 55 °C (-40 °F to 131 °F)
• Working Humidity: 10% to 95%
• Dimensions (W × H × D): 98.2 mm × 100.2 mm × 33.7 mm (3.87" × 3.95" × 1.33")
• Battery: /
• Power Supply: 12 VDC, powered for other module
• Application Environment: Outdoor
• Power Consumption: 1 W
