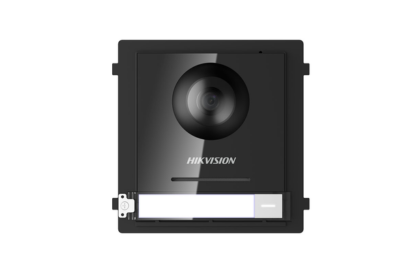

Hikvision DS-KD8003Y-IME2 Gen2 Y Series 2 Wire Intercom, Door Station with Camera, 1 Button, IP65

Two wire main unit

• 2-Wire main unit of modular door station
• 2MP fisheye camera with IR supplement
• One call Physical Button For easier calls
• Two-lock control
• IP65 protection level
• Convenient configuration via Web remotely
• Directly provide 12 V, 500 mA power output for one electronic lock without additional power supply

System Parameters

• Operation System: Embedded Linux operating system
• ROM: 32 MB
• RAM: 256 MB
• Processor: Embedded Processor

Display Parameters

• Screen Size: Not applicable
• Operation Method: Not applicable
• Type: Not applicable
• Resolution: Not applicable

Video Parameters

• Lens: 1
• Resolution: 2 MP
• FOV: Horizontal: 146°, Vertical: 82°
• Wide Dynamic Range (WDR): Supported
• Supplement Light: IR light, up to 3 m
• Video Compression Standard: H.264

Audio Parameters

• Audio Input: 1 built-in omnidirectional microphone
• Audio Compression Standard: G.711 U, G.711 A
• Audio Output: 1 built-in loudspeaker
• Audio Compression Bitrate: 64 Kbps
• Audio Quality: Noise suppression and echo cancellation
• Volume Adjustment: Adjustable

Capacity

• User Capacity: 2000
• Face Capacity: Not applicable
• Fingerprint Capacity: Not applicable
• Message Capacity: Not applicable
• Linked Indoor Station Capacity: 500
• Sub Door Station Capacity: 16

Network Parameters

• Network Protocol: Not applicable
• Wi-Fi: Not applicable
• Bluetooth: Not applicable
• 3G/4G: Not applicable

Device Interfaces

• Alarm Input: 4 (2 exit buttons and 2 door contacts by default)
• Network Interface: Not applicable
• TAMPER: 1
• Exit Button: 2 (for lock control)
• RS-485: 1 (for Hikvision's sub module communication)
• USB: Not applicable
• Wiegand: Not applicable
• TF Card: Not applicable
• Alarm Output: Not applicable
• Lock Control: 2 relays, Max. to 30 VDC, 2 A
• Door Contact Input: 2
• Two-Wire IP Interface: 1

General

• Button: 1
• Installation: Surface mounting, flush mounting
• Indicator: Not applicable
• Weight:
  • Net weight: 0.380 kg
  • Gross weight: 0.541 kg
• Protective Level: IP65
• Working Temperature: -40° C to 60° C (-22° F to 140° F)
• Working Humidity: 10% to 90%
• Dimension (W × H × D): 100 mm × 98 mm × 42 mm
• Battery: Not applicable
• Power Supply: Powered by KAD704Y or KAD706Y series distributor
• Application Environment: Outdoor
• Power Consumption: ≤ 4 W
• Language: English, French, Portuguese, Brazilian Portuguese, Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Slovak
