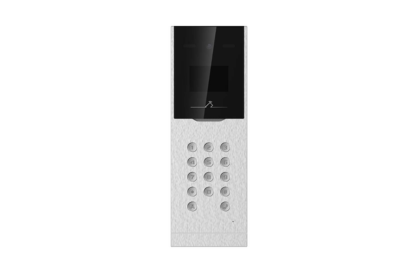

Hikvision DS-KD8023-E6 2nd Gen Intercom Apartment Door Station, IP65, Silver

3.5inch Metal IP Door Station

• 3.5-inch colorful LCD screen with 480 × 320 resolution
• 2MP HD colorful camera with high quality image
• IP65 protection level
• Built-in M1 card reading module
• Multiple interfaces: RJ45, RS-485, alarm input, relay, Wiegand
• Convenient configuration via Web remotely
• Convenient unlock methods: Cards and PIN code

System Parameters

Operating System

• Operating System: Linux

Storage

• ROM: 4 GB
• RAM: 512 MB

Processor

• Processor: Embedded high-performance processor

Display Parameters

• Screen Size: 3.5-inch
• Type: Colorful LCD
• Resolution: 480 × 320

Video Parameters

• Lens: 2 MP HD camera
• Resolution:
  • Main stream: 1920 × 1080p, 720p
  • Sub stream: 640 × 480p
• FOV: Horizontal: 70°, Vertical: 121°, Diagonal: 131°
• Wide Dynamic Range (WDR): Digital WDR/120 dB
• Supplement Light: IR light, up to 3 m
• Video Compression Standard: H.264

Audio Parameters

• Audio Input: 1 built-in omnidirectional microphone
• Audio Compression Standard: G.711 U, G.711 A
• Audio Output: 1 built-in loudspeaker
• Audio Compression Bitrate: 64 Kbps
• Audio Quality: Noise suppression and echo cancellation
• Volume Adjustment: Adjustable

Capacity

• Card Capacity: 10000
• Linked Network Camera Capacity: 500

Network Parameters

• Network Protocol: TCP/IP, RTSP
• Wi-Fi: /
• Bluetooth: /
• 3G/4G: /
• Authentication: Card Type: M1 card

Device Interfaces

• Alarm Input: 8
• Network Interface: 1 RJ-45 10/100/1000 Mbps self-adaptive
• TAMPER: 1
• Exit Button: 2
• RS-485: 1 RS-485 (Half duplex, HIKVISION)
• USB: /
• Wiegand: 1
• TF Card: /
• Alarm Output: 2
• Lock Control: 2 relays, Max. 30 VDC, 2 A
• Door Contact Input: 2

General

• Button: 14 physical buttons
• Installation: Flush mounting
• Indicator: /
• Weight:
  • Net Weight: 1.05 kg
  • Gross Weight: 2.166 kg
• Protective Level: IP65
• Working Humidity: 10% to 95% (non-condensing)
• Dimensions: 418 mm × 145 mm × 59.7 mm (16.46" × 5.71" × 2.35")
• Battery: /
• Power Supply: 12 VDC, 1 A
• Application Environment: Outdoor
• Power Consumption: ≤ 10 W
