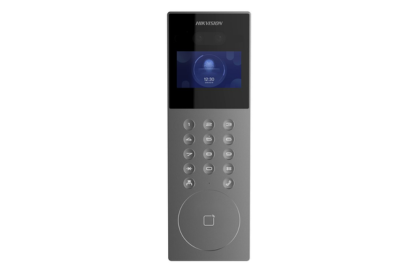

Facial Recognition Door station
-
4.3-inch colorful LCD screen with 800 × 480 resolution
-
2 × 2 MP wide-angle HD lens
-
IP65 protection level
-
Built-in M1 card reading module
-
Multiple interfaces: RJ45, RS-485, alarm input, relay, Wiegand
-
Convenient configuration via Web remotely
-
Convenient unlock methods: face, cards, PIN code
System Parameters
Operating System: Linux
ROM: 1 GB
RAM: 4 GB
Processor: Embedded high-performance processor
Display Parameters
Screen Size: 4.3-inch
Operation Method: N/A
Type: Colorful LCD
Resolution: 800 × 480
Video Parameters
Lens: 2 MP HD camera
Resolution:
- Main stream: 1080p@30fps, 720p@30fps
- Sub stream: VGA@25fps, VGA@30fps
FOV: N/A
Wide Dynamic Range (WDR): Digital WDR/120 dB
Supplement Light: IR light, up to 3 m
Video Compression Standard: H.264
Audio Parameters
Audio Input: 1 built-in omnidirectional microphone
Audio Compression Standard: G.711 U, G.711 A
Audio Output: 1 built-in loudspeaker
Audio Compression Bitrate: 64 Kbps
Audio Quality: Noise suppression and echo cancellation
Volume Adjustment: Adjustable
Capacity
User Capacity: 10,000
Face Capacity: 5,000
Card Capacity: 50,000
Fingerprint Capacity: N/A
Network Parameters
Network Protocol: TCP/IP, RTSP
Wi-Fi: N/A
Bluetooth: N/A
3G/4G: N/A
Device Interfaces
Alarm Input: 4
Network Interface: 1 RJ-45 10/100/1000 Mbps self-adaptive
TAMPER: 1
Exit Button: 1
RS-485: 2 RS-485 (Half duplex, HIKVISION)
USB: N/A
Wiegand: N/A
TF Card: N/A
Alarm Output: N/A
Lock Control: 2 relays, Max. 30 VDC, 2 A
Door Contact Input: 1
General
Button: N/A
Installation: Flush mounting
Indicator: N/A
Weight:
- Net weight: 0.995 kg
- Gross weight: 1.592 kg
Protective Level: IP65
Working Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
Working Humidity: 10% to 90% (no-condensing)
Dimension (W × H × D): 373 mm × 124 mm × 43.7 mm (14.69" × 4.88" × 1.72")
Battery: N/A
Power Supply: 12 VDC, 1.5 A
Application Environment: Outdoor
Power Consumption: ≤ 13 W
Language: English, Traditional Chinese, Brazilian Portuguese, Spanish, Russian, Turkish, Arabic, Vietnamese, Kazakh, Uzbek, Ukrainian, Estonian, Lithuanian, Latvian, Czech
