Description
Two wire indoor stations

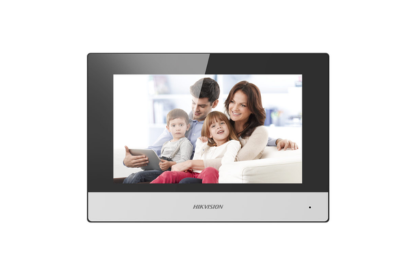

- 7-inch IPS touch screen 2-Wire IP indoor station with 1024 × 600 resolution
- Convenient Hik-Connect APP Mobile Control
- Receive calls, open the door and live view remotely
- Easy to use without PC
- Easy wizard for quick set up
- Configure the whole system on one touch screen
- Live view of the door station and cameras in public areas
- Support voice messages when no response from the indoor station
- Receive alarms by linkage with a alarm system and notify the center to handle in time
- Elevator access control
System Parameters
Operation System
- Embedded Linux operation system
ROM
- 32 MB
RAM
- 128 MB
Processor
- Embedded processor
Display Parameters
Screen Size
- 7-inch
Operation Method
- Capacitive touch screen
Type
- TFT
Resolution
- 1024 × 600
Video Parameters
Lens
- Not specified
Resolution
- Not specified
FOV
- Not specified
Wide Dynamic Range (WDR)
- Not specified
Video Compression Standard
- Not specified
Focal Length
- Not specified
Audio Parameters
Audio Input
- Built-in omnidirectional microphone
Audio Compression Standard
- G.711 U, G.711 A
Audio Output
- Built-in loudspeaker
Audio Compression Bitrate
- 64 Kbps
Audio Quality
- Noise suppression and echo cancellation
Volume Adjustment
- Adjustable
Capacity
Message Capacity
- 200 captured pictures (with TF card); 200 alarm records
- 2 MB RAM (without TF card) reserved for events
Notice Capacity
- 200
Linked Network Camera Capacity
- 16
Linked Indoor Extensions Capacity
- 16
Linked Doorphone Capacity
- 17 IP doorphones Max.
Network Parameters
Network Protocol
- TCP/IP, SIP, RTSP
Wi-Fi
- IEEE802.11b, IEEE802.11g, IEEE802.11n
Bluetooth
- Not specified
3G/4G
- Not specified
Zigbee
- Not specified
Device Interfaces
Alarm Input
- 8-ch alarm inputs
TAMPER
- Not specified
RS-485
- 1
USB
- Not specified
TF Card
- Max to 128 GB, SD 2.0 or lower version
Alarm Output
- 2 relays (30 V Max.)
Lock Control
- 2 relays, Max. to 30 VDC, 0.3 A
Two-Wire IP Interface
- 1
General
Button
- Not specified
Installation
- Surface mounting
Indicator
- Not specified
Weight
- Net weight: 0.325 kg
- Gross weight: 0.650 kg
Protective Level
- Not specified
Working Temperature
- -10 °C to 50 °C (14 °F to 122 °F)
Working Humidity
- 10% to 90% (no-condensing)
Dimensions
- 200 mm × 140 mm × 23.6 mm (7.87" × 5.51" × 0.93")
Battery
- Not specified
Power Supply
- Powered by KAD704Y or KAD706Y series distributor
Application Environment
- Indoor
Power Consumption
- ≤ 4 W
Language
- English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Portuguese, Slovak
