Description

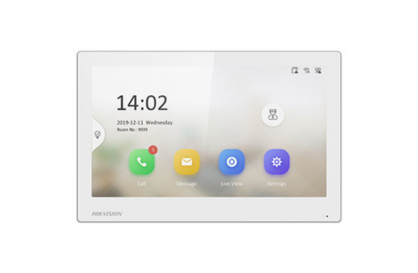

KH6 Series IP-Based Indoor Station
- 7-inch TFT touch screen with 1024 × 600 resolution
- Convenient Hik-Connect APP Mobile Control
- Receive calls, open the door and live view remotely
- Easy to use without PC
- Easy wizard for quick set up
- Configure the whole system on one touch screen
- Live view of the door station and cameras in public areas
- Support voice messages when no response from the indoor station
- Receive alarms by linkage with a alarm system and notify the center to handle in time
- Elevator access control
System Parameters
Operation System
- Linux
ROM
- 32 MB
RAM
- 128 MB
Processor
- Embedded high-performance processor
Display Parameters
Screen Size
- 7-inch
Operation Method
- Capacitive touch screen
Type
- Colorful TFT
Resolution
- 1024 × 600
Video Parameters
Lens
- Not specified
Resolution
- Not specified
FOV
- Not specified
Wide Dynamic Range (WDR)
- Not specified
Video Compression Standard
- Not specified
Focal Length
- Not specified
Audio Parameters
Audio Input
- 1 built-in omnidirectional microphone
Audio Compression Standard
- G.711U, G.711A
Audio Output
- 1 built-in loudspeaker
Audio Compression Bitrate
- 64 Kbps
Audio Quality
- Noise suppression and echo cancellation
Volume Adjustment
- Adjustable
Capacity
Message Capacity
- TF card inserted: 200 captured pictures, 200 alarm records
- Without TF card: 2 MB RAM for picture storage; The storage number is decided by the picture size, 200 alarm records
Notice Capacity
- 200
Linked Indoor Extensions Capacity
- 16
Linked Doorphone Capacity
- 17
Network Parameters
Network Protocol
- TCP/IP, SIP, RTSP
Wi-Fi
- 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
Bluetooth
- Not specified
3G/4G
- Not specified
Zigbee
- Not specified
Device Interfaces
Alarm Input
- 8
Network Interface
- 1 RJ-45 10/100 Mbps self-adaptive
TAMPER
- Not specified
RS-485
- 1 RS-485 (Half duplex)
USB
- Not specified
TF Card
- Support TF card, up to 128 GB
Alarm Output
- 2
Lock Control
- 2 relays, Max. 30 VDC 0.3 A
General
Button
- Not specified
Installation
- Wall mounting, table mounting
Indicator
- Not specified
Weight
- Net weight: 355 g (0.8 lb)
- Gross weight: 683 g (1.5 lb)
Protective Level
- Not specified
Working Temperature
- -10 °C to 50 °C (14 °F to 122 °F)
Working Humidity
- 10% to 90% (no-condensing)
Dimensions
- 175 mm × 113.5 mm × 21 mm (6.9" × 4.5" × 0.83")
Battery
- Not specified
Application Environment
- Indoor
Power Consumption
- ≤ 5 W
Language
- English, Arabic, French, Russian, Spanish, Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Chinese Traditional
