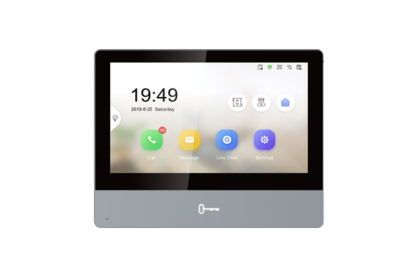

KH8 Series Indoor Station
-
7-inch IPS touch screen with 1024 × 600 resolution
-
Reddot award winner
-
Convenient Hik-Connect APP Mobile Control
-
Receive calls, open the door and live view remotely
-
Easy to use without PC
-
Easy wizard for quick set up
-
Configure the whole system on one touch screen
-
Rich functions and extensions
-
Live-view of the door station and cameras in public areas
-
Support voice messages when no response from the indoor station
-
Receive alarms by internal alarm terminals
-
Elevator access control
System Parameters
-
Operation System: Linux
-
ROM: 32 MB
-
RAM: 128 MB
-
Processor: Embedded high-performance processor
Display Parameters
-
Screen Size: 7-inch
-
Operation Method: Capacitive touch screen
-
Type: Colorful IPS
-
Resolution: 1024 × 600
Video Parameters
-
Lens: /
-
Resolution: /
-
FOV: /
-
Wide Dynamic Range (WDR): /
-
Video Compression Standard: /
Focal Length: /
Audio Parameters
-
Audio Input: 1 built-in omnidirectional microphone
-
Audio Compression Standard: G.711U/G.711A
-
Audio Output: 1 built-in loudspeaker
-
Audio Compression Bitrate: 64 Kbps
-
Audio Quality: Noise suppression and echo cancellation
-
Volume Adjustment: Adjustable
Capacity
-
Notice Capacity: 200
-
Linked Indoor Extensions Capacity: 16
-
Linked Doorphone Capacity: 17
-
Linked Network Camera Capacity: 16
Network Parameters
-
Network Protocol: TCP/IP, SIP, RTSP
-
Wi-Fi: 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
-
Bluetooth: /
-
3G/4G: /
-
Zigbee: /
Device Interfaces
-
Alarm Input: 8
-
Network Interface: 1 RJ-45 10/100 Mbps self-adaptive
-
TAMPER: /
-
RS-485: 1 RS-485 (Half duplex)
-
USB: /
-
TF Card: Support TF card, up to 128 GB
-
Alarm Output: 2
-
Lock Control: 2 high/low level relays (3.3V/0V)
General
-
Button: 1 physical button
-
Installation: Surface mounting
-
Indicator: /
Weight
- Net weight: 355 g (0.8 lb)
- Gross weight: 899 g (2.0 lb)
Protective Level: /
Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity: 10% to 90% (non-condensing)
Dimension (W × H × D): 180 mm × 140 mm × 22.4 mm (7.09" × 5.51" × 0.88")
Battery: /
Power Supply: 12 VDC, 1 A, IEEE802.3af, standard PoE
Application Environment: Indoor
Power Consumption: ≤ 8 W
Language: English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese (Brazil), Spanish, Hebrew, Romanian, Turkish, Estonian, Danish, Swedish, Norwegian, Finnish, Vietnamese, Croatian, Slovenian, Serbian, Arabic, Portuguese (Portugal), Lithuanian, Uzbek, Kazakh, Mongolian, Ukrainian
