Description

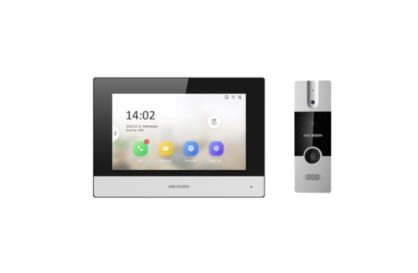

Hybrid Intercom Kit
- Hybrid Intercom Bundle with 1 indoor station and 1 four-wire analog door station
- User-friendly control with a convenient touch screen
- Convenient management via the Hik-Connect mobile client
- More cost-effective options with analog doorbells
- Easy installation as the doorbell requires no exclusive power supply
- European power supply adaptor included (please mark for other standards when you order)
Door Station / System Parameters
Operation System:
- Embedded analog operation system
Door Station / Video Parameters
Resolution:
- 1920 x 1080
FOV:
- Horizontal: 66.2°, Vertical: 37.2°
Door Station / Audio Parameters
Audio Input:
- Built-in omnidirectional microphone
Audio Output:
- Built-in loudspeaker (More than 80 dB within 20 cm)
Volume Adjustment:
- Adjustment with screwdriver
Door Station / Device Interfaces
Alarm Input:
- 4
Two-Wire:
- 1
TAMPER:
- 1
Exit Button:
- 2
Lock Control:
- 2, locking time can be adjusted via DIP switch (Max. 7 s)
Door Contact Input:
- 2
Power Supply For Lock:
- 1, Max. 12 V 1 A
Debugging Port:
- 1
I/O Output:
- 1 relay output
Four-Wire:
- 1 for 4-wire interface
Door Station / General
Button:
- 1
Installation:
- Flush mounting
Protective Level:
- IP65, IK7
Working Temperature:
- -30 °C to +60 °C (-22 °F to 140 °F)
Working Humidity:
- 10% to 90%
Dimensions:
- 150 mm × 82 mm × 23.5 mm (5.91" × 3.23" × 0.93")
Power Supply:
- 48 VDC, 0.5 A
Power Consumption:
- ≤ 12 W
Application Environment:
- Outdoor
Indoor Station / System Parameters
Operation System:
- Embedded Linux operation system
RAM:
- 128 MB
ROM:
- 32 MB
Indoor Station / Display Parameters
Size:
- 7-inch colorful TFT screen
Operation Method:
- Capacitive touch screen
Type:
- Colorful TFT screen
Resolution:
- 1024 × 600
Indoor Station / Video Parameters
Resolution:
- N/A
Lens:
- N/A
WDR:
- N/A
FOV:
- N/A
Indoor Station / Audio Parameters
Audio Input:
- Built-in omnidirectional microphone
Audio Output:
- Built-in loudspeaker
Audio Compression Rate:
- 64 Kbps
Audio Compression Standard:
- G.711 U, G.711 A
Volume Adjustment:
- Adjustable
Audio Quality:
- Noise suppression and echo cancellation
Indoor Station / Capacity Parameters
Linked IPC Capacity:
- 16
Notice Capacity:
- 200
Linked Indoor Extensions Capacity:
- 16
Linked Doorphone Capacity:
- 2 analog doorphones, 15 IP doorphones Max.
Indoor Station / Network Parameters
Wired Network:
- 10/100 Mbps self-adaptive
Wi-Fi:
- Wi-Fi 802.11 b/g/n
3G/4G:
- N/A
Bluetooth:
- N/A
Protocol:
- TCP/IP, SIP, RTSP
Indoor Station / Device Interfaces
Network Interface:
- 1 RJ-45 10/100 Mbps self-adaptive
RS-485:
- 1
Alarm Input:
- 2-ch alarm inputs
Alarm Output:
- 2
Power Input:
- 1, 12 VDC
TAMPER:
- N/A
TF Card:
- Max to 128 GB, SD 2.0 or lower version
USB Interface:
- N/A
Four-Wire Interface:
- 2
Indoor Station / General
Button:
- 0
Power Supply:
- IEEE802.3af, Standard PoE, 12 VDC
Power Consumption:
- ≤ 6 W
Working Temperature:
- -10 °C to 50 °C (14 °F to 122 °F)
Working Humidity:
- 10% to 90%
Dimensions (W × H × D):
- 200 mm × 140 mm × 23.6 mm (7.9" × 5.5" × 0.9")
Installation:
- Surface mounting
Application Environment:
- Indoor
Protective Level:
- N/A
Weight:
- With package: 365 g
- Without package: 355 g
