Description

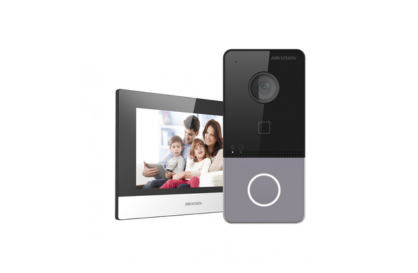

IP Video Intercom Kit
- IP video intercom kit for villa or house, only one call button;
- DS-KV6113-WPE1 x1;
- DS-KH6320-WTE1 x1;
- PSU x2;
Door Station/System Parameters
- Operation System: Embedded Linux operating system
- Flash: 32 MB
- RAM: 128 MB
Door Station/Video Parameters
- Camera: 2MP HD camera
- Night Vision: Low illumination IR supplement mode: 3 m
- Backlight Compensation: Support
- Digital Noise Reduction: Support
- WDR: True WDR
- Field Of View: Horizontal: 129°, Vertical: 75°
- Video Compression Standard: H.264
- Stream: Main stream: 1080p@30fps, 720p@25fps; Sub stream: D1@25fps
- Motion Detection: Support
- Flash-Avoid Frequency: 50 Hz, 60 Hz
Door Station/Audio Parameters
- Audio Input: Built-in omnidirectional microphone
- Audio Output: Built-in loudspeaker
- Audio Quality: Noise suppression and echo cancellation
- Audio Compression Standard: G.711 U
- Audio Compression Rate: 64 Kbps
- Audio Intercom: Two-way audio communication
Door Station/Network Parameters
- Network Protocol: TCP/IP, RSTP
- Wired Network: 10/100 Mbps Ethernet
Door Station/Device Interfaces
- RS-485: 1
- Alarm Input: 4
- Debugging Port: 1
- Grounding: 1
- TAMPER Switch: 1
Door Station/General
- Power Consumption: < 10 W
- Working Temperature: -40° C to 53° C (-40° F to 127.4° F)
- Working Humidity: 10% to 95%
- Dimension: 138 mm × 65 mm × 27 mm
- Installation: Surface mounting
- Protection Level: IP65
- Indicator: 2
- Power Supply: IEEE802.3af, standard PoE; 12 VDC
Indoor Station/System Parameters
- Operation System: Embedded Linux operating system
- Memory: 128 MB
- Flash: 32 MB
Indoor Station/Display Parameters
- Display Screen: 7-inch colorful TFT screen
- Display Resolution: 1024 × 600
- Operation Method: Capacitive touch screen
Indoor Station/Audio Parameters
- Audio Input: Built-in omnidirectional microphone
- Audio Output: Built-in loudspeaker
- Audio Quality: Noise suppression and echo cancellation
- Audio Compression Standard: G.711 U
- Audio Compression Rate: 64 Kbps
Indoor Station/Network Parameters
- Wired Network: 10/100 Mbps self-adaptive
- Wireless Network: Wi-Fi 802.11 b/g/n
- Protocol: TCP/IP, SIP, RTSP
- RS-485: 1 RJ-45 10/100 Mbps self-adaptive
Indoor Station/Device Interfaces
- RS-485: 1
- Alarm Input: 8-ch alarm inputs
- Relay Output: 2
- TF Card: Max to 32 GB, SD 2.0 or lower version
Indoor Station/General
- Power Consumption: ≤ 6 W
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 10% to 90%
- Dimension (L × W × H): 200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
