Description

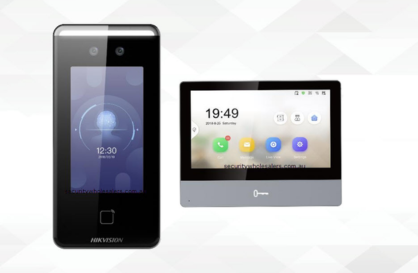

Facial IP Intercom Kit
- MinMoe face recognition terminal and indoor station bundle for villa or commercial
- One call button for easier calls
- Supports Wi-Fi and PoE power supply for easy installation
- Including: DS-K1T341AM × 1, DS-KH8350-WTE1 × 1, PSU × 2, 16GB TF card × 1
- Power adapter included in the package
Face Recognition Terminal / Audio
Audio Input:
- Built-in omnidirectional microphone
Audio Output:
- Built-in loudspeaker
Volume Adjustment:
- Adjust via device or client
Face Recognition Terminal / Authentication
Card Type:
- M1 card
Card Reading Distance:
- 0 to 3 cm
Card Reading Duration:
- < 1 s
Face Recognition Duration:
- < 0.2 s
Face Recognition Distance:
- 0.3 to 1.5 m
Face Recognition Terminal / Camera
Pixel:
- 2 MP
WDR:
- Support
Lens:
- 2
Video Standard:
- PAL (Default) and NTSC
Face Recognition Terminal / Capacity
Card Capacity:
- 1500
Face Capacity:
- 1500
Event Capacity:
- 150,000
Face Recognition Terminal / Function
Face Antispoofing:
- Support
Live View:
- Supports live view on the platform, H.264
Face Recognition:
- Supports face recognition in low illumination
Access Control Management:
- Support multiple authentication methods
Face Recognition Terminal / General
Protection Level:
- IP65
Power Supply:
- 12 VDC, 2A
Working Temperature:
- -30 °C to 60 °C (-22 °F to 140 °F)
Working Humidity:
- 0 to 90% (No condensing)
Face Recognition Terminal / Interfaces
Network Interface:
- 1, RJ45
RS-485:
- 1
Wiegand:
- Wiegand 26 and Wiegand 34
Lock Output:
- 1
Exit Button:
- 1
Door Contact Input:
- 1
Power Interface:
- 1
TAMPER Switch:
- 1
USB:
- 1, USB 2.0
Face Recognition Terminal / Network
Wired Network:
- 10/100/1000 Mbps self-adaptive
Communication Protocol:
- ISUP 5.0
Face Recognition Terminal / Screen
Size:
- 4.3-inch
Resolution:
- 800 × 480
Operation Method:
- Capacitive touch screen
Face Recognition Terminal / System Parameters
Operation System:
- Embedded Linux operation system
Indoor Station / System Parameters
Operation System:
- Embedded Linux operation system
Memory:
- 128 MB
Flash:
- 32 MB
Indoor Station / Display Parameters
Display Screen:
- 7-inch colorful IPS LCD
Display Resolution:
- 1024 × 600
Operation Method:
- Capacitive touch screen, physical button
Indoor Station / Audio Parameters
Audio Input:
- Built-in omnidirectional microphone
Audio Output:
- Built-in loudspeaker
Audio Quality:
- Noise suppression and echo cancellation
Audio Compression Standard:
- G.711 U
Audio Compression Rate:
- 64 Kbps
Indoor Station / Network Parameters
Wired Network:
- 10/100 Mbps self-adaptive
Wireless Network:
- Wi-Fi 802.11 b/g/n
Protocol:
- TCP/IP, SIP, RTSP
Network Interface:
- 1 RJ-45 10/100 Mbps self-adaptive
Alarm Input:
- 8-ch alarm inputs
I/O Output:
- 2
TF Card:
- Max to 32 G, SD 2.0 or lower version
Indoor Station / General
Power Supply:
- IEEE802.3af, standard PoE
- 12 VDC/1 A
Power Consumption:
- ≤ 7 W
Working Temperature:
- -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity:
- 10% to 90%
Dimension (L × W × H):
- 180 mm × 140 mm × 22.4 mm (7.09" × 5.51" × 0.88")
Power Supply Via Detector:
- 12 V, 200 mA
Weight:
- 899 g (with packaging)
- 355 g (without packaging)
