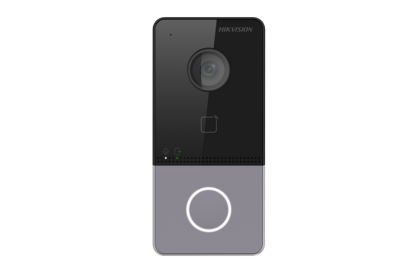

Hikvision DS-KV6113-WPE1(C) 2nd Gen IP Villa Door Station, 1 Button, 2MP, 12VDC/POE, Wi-Fi, Mifare

POE/Wifi Villa Door Station

• 2 MP camera with IR supplement
• One-touch button calling design for easier calls
• Built-in card reader module
• Standard PoE power supply
• IP65 protection level
• Convenient Hik-Connect APP Mobile Control


System Parameters

• Operating System: Linux
• ROM: 32 MB
• RAM: 256 MB
• Processor: Embedded high-performance processor

Display Parameters

• Screen Size: Not specified
• Operation Method: Not specified
• Type: Not specified
• Resolution: Not specified

Video Parameters

• Lens: 1
• Resolution:
  • Main Stream: 1920 × 1080p, 720p
  • Sub Stream: 640 × 480p
• Field of View (FOV): Horizontal: 131°, Vertical: 78°
• Wide Dynamic Range (WDR): Supports 120 dB
• Supplement Light: IR light, up to 3 meters
• Video Compression Standard: H.264

Audio Parameters

• Audio Input: 1 built-in omnidirectional microphone
• Audio Compression Standard: G.711 U
• Audio Output: 1 built-in loudspeaker
• Audio Compression Bitrate: 64 Kbps
• Audio Quality: Noise suppression and echo cancellation
• Volume Adjustment: Adjustable

Capacity

• User Capacity: 2000
• Face Capacity: Not specified
• Card Capacity: 10,000

Network Parameters

• Network Protocol: TCP/IP, RTSP
• Wi-Fi: IEEE802.11b, IEEE802.11g, IEEE802.11n
• Bluetooth: Not supported
• 3G/4G: Not supported

Device Interfaces

• Alarm Input: 4
• Network Interface: 1 RJ-45, 10/100 Mbps self-adaptive
• TAMPER: 1
• Exit Button: 1
• RS-485: 1
• USB: Not specified
• Wiegand: Not specified
• TF Card: Reserved
• Alarm Output: Not specified
• Lock Control: 1 relay, Max. 30 VDC 2 A
• Door Contact Input: 1

General Specifications

• Button: 1 physical button
• Installation: Surface mounting
• Indicator: 2
• Weight:
  • Net Weight: 0.190 kg
  • Gross Weight: 0.414 kg
• Protective Level: IP65
• Working Temperature: -40 °C to 55 °C (-40 °F to 131 °F)
• Working Humidity: 10% to 95% (non-condensing)
• Dimensions (W × H × D): 138 mm × 65 mm × 27 mm (5.4" × 2.6" × 1.1")
• Battery: Not specified
• Application Environment: Outdoor
• Power Consumption: < 10 W
• Language Support: English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Portuguese, Slovak
