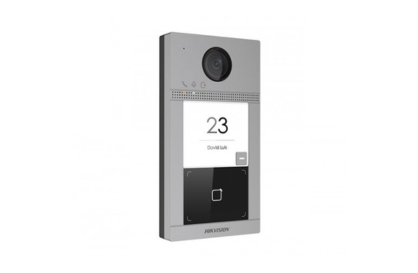

Hikvision DS-KV8113-WME1 Gen2 Intercom 1 Button ‘Villa’ Door Station (LAN / WiFi)

1 Button Metal Villa Door Station

• Support Wifi, convenient setting up and no wiring required
• Support web configuration
• Aluminum alloy, Nice industry design, IP65, IK08, 3 indicator integrated
• Internal Mifare card reader, 1-ch Indoor station access control
• Noise suppression and echo cancellation
• 2MP HD Camera with IR supplement
• Standard PoE/12 VDC


System Parameters

• Operating System: Embedded Linux operating system
• ROM: 32 MB
• RAM: 256 MB
• CPU: Embedded MCU Processor

Display Parameters

• Screen Size: /
• Operation Method: /
• Type: /
• Resolution: /

Video Parameters

• Lens: 1
• Resolution:
  • Main stream: 1920 × 1080
  • Sub stream: 720 × 480
• FOV: Horizontal: 129°, Vertical: 75°
• WDR: Support
• Supplement Light: IR supplement
• Video Compression Standard: H.264

Audio Parameters

• Audio Compression Standard: G.711 U
• Audio Input: Built-in omnidirectional microphone
• Audio Output: Built-in loudspeaker (More than 85 dB within 20 cm)
• Audio Compression Bitrate: 64 Kbps
• Audio Quality: Noise suppression and echo cancellation
• Volume Adjustment: Adjustable

Capacity

• User Capacity: /
• Face Capacity: /
• Card Capacity: /
• Linked Indoor Station Capacity: 1

Network Parameters

• Communication Protocol: TCP/IP, RTSP
• Wired Network: 10/100 Mbps self-adaptive Ethernet
• Wi-Fi Standard: /
• Bluetooth Version: /
• 3G/4G Standard: /

Device Interfaces

• Alarm Input: 4
• Network Interface: 1
• TAMPER: 1
• Exit Button: 2
• RS-485: 1
• USB: 0
• Wiegand: 0
• TF Card: 0
• Alarm Output: 0
• Lock Control: 2
• Door Contact Input: 2
• Power Interface: 1

Performances

• Multi-Factor Authentication: 2000

General

• Button: 1
• Installation: Surface mounting
• Indicator: 3
• Weight: 385 g
• Protective Level: IP65, IK08
• Working Temperature: -40° C to +55° C (-40° F to 131° F)
• Working Humidity: 10% to 95%
• Dimensions: 174 mm × 91 mm × 29 mm
• Battery: /
• Application Environment: Outdoor
• Power Consumption: < 10 W
• Language: English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Portuguese, Slovak
