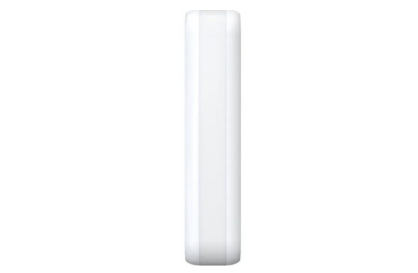

Hikvision DS-PDC10AM-VG3 AX Hybrid Series Wired PIR AM Curtain Detector

Wired PIR AM Curtain Detector

• · Slim design for window frame installation
• · IP65 weather resistance for outdoor application
• · Active IR anti-masking
• · Automatic sensitivity
• · Selectable EOL resistors for alarm and tamper-proof wiring
• · Directional detection support

Detection Performance

• Detection Method: Passive Infrared
• Detection Range:
  • Wall Mount: 10m
  • Ceiling Mount: 6m
• Detection Angle: 5°
• Detection Zones: 32
• Detectable Speed: 0.2～3m/s
• Sensitivity: Auto
• White Light Filter: 6500lux
• Digital Temperature Compensation: Support
• Creep Zone Protection: Support
• Anti-masking: Support
• Directional Detection: Support

Feature

• Digital Processing: Support
• Sealed Optics: Support
• Tamper Protection: Front;Rear

Interface

• Alarm Output: Normally Closed
• LED Indicator: Blue(Alarm), Green+Orange(Mask)

Transmission

• Transmission Method: Wired

Electrical Characteristics

• Power Supply: 9 to 16 VDC
• Typical Voltage: 12 VDC
• Power Consumption:
  • Maximum current: 22mA @12VDC
  • Quiescent current: 9mA @12VDC

General

• Operation Temperature: -25 °C to 60 °C (-13 °F to 140 °F)
• Storage Temperature: -25 °C to 60 °C (-13 °F to 140 °F)
• Operation Humidity: 10% to 90%
• IP Rate: IP65
• Dimension(WxHxD): 29.2mm × 134.4mm × 39.5mm
• Weight: 77.5g
• Mounting Height: 2 to 4m
• Mounting Method: Wall;Ceiling
• Application Scenario: Indoor, Outdoor
• Bracket: L-shaped adapter included
