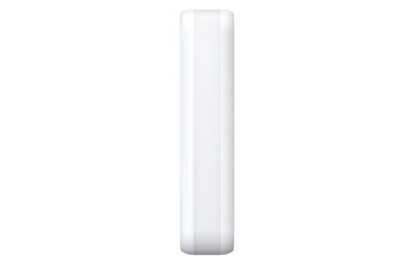

Wireless Dual-Tech AM Curtain Detector
-
Slim design for window frame installation
-
IP65 weather resistance for outdoor application
-
Active IR anti-masking
-
Directional detection support
-
Multiple enrollment methods and easy installation
-
Frequency hopping against jamming for reliable transmission
Detection Performance
-
Detection Method: Passive Infrared; Microwave
-
Detection Range:
- Wall mount: 10m
- Ceiling mount: 5m
-
Detection Angle: 5°
-
Detection Zones: 32
-
Detectable Speed: 0.3～2m/s
-
Sensitivity: Auto; Pet
-
White Light Filter: 6500lux
-
Microwave Frequency: 24GHz (24.15～24.25GHz)
-
Pet Immunity:
- Wall mount: 12 kg
- Ceiling mount: none
-
Digital Temperature Compensation: Support
-
Creep Zone Protection: Support
-
Anti-masking: Support
Feature
-
Digital Processing: Support
-
Sealed Optics: Support
-
Tamper Protection: Front; Rear
-
Environment Temperature Indicator: Support
-
Signal Strength Indicator: Support
-
Directional Detection: Support
Interface
-
Power Switch: Power up enrolling
-
LED Indicator: Green (PIR), red (microwave), green+orange (mask), blue (alarm)
Transmission
-
Transmission Technology: Tri-X Wireless
-
Transmission Method: Two-Way RF Wireless
-
Transmission Frequency: 433MHz
-
Transmission Security: AES-128 Encryption
-
Transmission Range (Free Space): 1Km
-
Frequency Hopping: Support
Enrolling Method
- Power up; Remote ID; QR Code
Electrical Characteristics
-
Standard Battery Life: Up to 5 years (standby time) (The battery working time can be significantly reduced at low temperatures)
-
Power Supply: Battery powered
-
Battery Type: CR123A × 2
-
Typical Voltage: 3V
General
-
Operation Temperature: -25°C to 60°C (-13°F to 140°F)
-
Storage Temperature: -25°C to 60°C (-13°F to 140°F)
-
Operation Humidity: 10% to 90%
-
IP Rate: IP65
Dimension (WxHxD)
- 29.2 mm × 134.4 mm × 39.5 mm
Weight
Mounting
-
Mounting Height: 2 m to 3.5 m
-
Mounting Method: Wall; Ceiling
-
Application Scenario: Indoor, outdoor
-
Bracket: L-shaped adapter included
