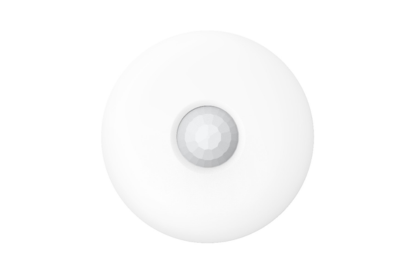

Wired Dual-Tech Ceiling Detector
-
Digital quad pyro sensor + 24GHz microwave
-
Automatic sensitivity
-
Wide voltage adaptation and on-board EoL resistor
Detection Performance
Detection Method: Passive Infrared; Microwave
Detection Range: 12m
Detection Angle: 360°
Detection Zones: 172
Detectable Speed: 0.3～2m/s
Sensitivity: Auto; Low
White Light Filter: 6500 lux
Microwave Frequency: 24 GHz (24.15～24.25 GHz)
Digital Temperature Compensation: Support
Creep Zone Protection: Support
Features
Digital Processing: Support
Sealed Optics: Support
Tamper Protection: Front
Interface
LED Indicator: Green (PIR), Red (Microwave), Blue (Alarm), Orange (Fault)
Electrical Characteristics
Power Supply: 9 to 16 VDC
Typical Voltage: 12 VDC
Power Consumption: 100 mA Max
General
Operation Temperature: -10 °C to 55 °C (14 °F to 131 °F)
Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
Operation Humidity: 10% to 90%
Dimension (WxHxD): φ120 mm x 33.2 mm
Weight: 138 g
Mounting Height: 2.4 to 4 m
Mounting Method: Ceiling
Application Scenario: Indoor
