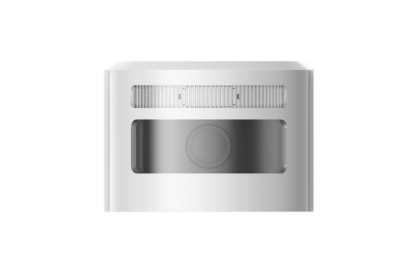

RF Camera Module
-
1/2.7" Progressive Scan CMOS
-
2.0 mm fixed lens
-
3D Digital Noise Reduction
-
Easy Installation
-
The direction of the Angle can be adjusted to fit the TT Detector's Angle
-
Protection Level IP66
Detection Performance
-
Detection Method: Video Verification
Feature
-
Digital Noise Reduction: 3D
-
Focal Length: 2.0mm @ F2.25
Video
-
Field Angle: 137.2° (H), 80.1° (V)
-
Image Type: JPEG
-
Resolution: 640x480; 320x240; 160x120
-
Fill Light: Infrared Light
-
Fill Range: 15m
-
Day/Night Switch: Auto
Interface
-
Communication Interface: 1 12-Bit Data Interface
Electrical Characteristics
-
Power Supply: 3 VDC
-
Power Consumption: 1200mA
General
-
Operation Temperature: -25 °C to 60 °C (-13 °F to 140 °F)
-
Storage Temperature: -25 °C to 60 °C (-13 °F to 140 °F)
-
Operation Humidity: 10% to 90%
-
IP Rate: IP66
-
Dimension (WxHxD): 74.1mm x 72.35mm x 53mm
-
Weight: 155g
