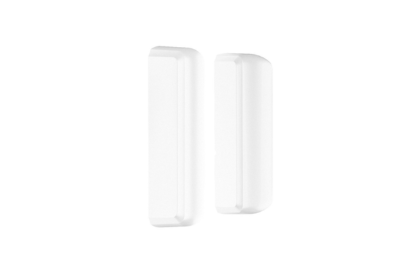

Wireless External Magnetic Contact
-
IP66 protective level, UV stable
-
Fully remote configurable through App
-
Multiple enrollment methods and easy installation design
-
Frequency hopping against jamming for reliable transmission
Detection Performance
-
Detection Method: Opening Contact
-
Detection Gap: 76mm Max
Feature
-
Digital Processing: Support
-
Tamper Protection: Front; Rear
-
Environment Temperature Indicator: Support
-
Signal Strength Indicator: Support
Interface
-
Alarm Input: Normally Closed; Normally Open; Impulse Count
-
Power Switch: Power Up Enrolling
-
LED Indicator: Blue (Alarm)
Transmission
-
Transmission Technology: Tri-X Wireless
-
Transmission Method: Two-Way RF Wireless
-
Transmission Frequency: 433MHz
-
Transmission Security: AES-128 Encryption
-
Transmission Range (Free Space): 1 Km
-
Frequency Hopping: Support
Enrolling Method
- Power up; Remote ID; QR Code
Electrical Characteristics
-
Standard Battery Life: Up to 5 years (standby time)
-
Power Supply: Battery Powered
-
Battery Type: CR123A x 1
-
Typical Voltage: 3V
General
-
Operation Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
-
Storage Temperature: -30 °C to 60 °C (-22 °F to 149 °F)
-
Operation Humidity: 10% to 90%
Dimension (WxHxD)
- Sensor: 40.5mm × 146mm × 40.9mm
- Magnetic Stick: 30.5mm × 146mm × 40.9mm
Weight
Application Scenario
