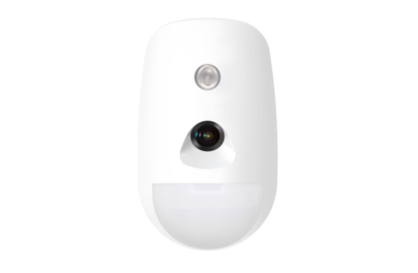

Hikvision DS-PDPC12P-EG2 Wired PIRCAM detector

Wired PIR-Camera Detector

• Detection range: 12m / 85.9°
• Up to 30KG pet immunity
• SEC (Smart Environmental Control) - Advanced digital signal processing and 3D optics
• Polarizing IR lens design for more uniform night illumination and excellent night shots
• Large integrated memory buffer for image storage
• Fully remote configurable through App

Detection Performance

• Detection Method: Passive Infrared; Video Verification
• Detection Range: 12m
• Detection Angle: 85.9°
• Detection Zones: 52
• Detectable Speed: 0.3～2m/s
• Sensitivity: High; Auto; Pet
• Pet Immunity: 30Kg
• White Light Filter: 6500lux
• Digital Temperature Compensation: Support
• Creep Zone Protection: Support

Feature

• Digital Processing: Support
• Sealed Optics: Support
• Tamper Protection: Front; Rear
• Environment Temperature Indicator: Support

Video

• Field Angle: 109°(H), 60°(V)
• Image Type: JPEG
• Resolution: 19201080; 1280720; 640*480
• Fill Light: Infrared Light
• Fill Range: 12m
• Day/Night Switch: Color/Black & White

Interface

• Alarm Output: High-Speed Bus
• LED Indicator: Blue(Alarm)

Transmission

• Transmission Technology: Speed-X Bus
• Transmission Method: Wired
• Transmission Security: AES-128 Encryption
• Transmission Range (Free Space): 1Km

Enrolling Method

• Power up; Remote ID; QR Code

Electrical Characteristics

• Power Supply: 9 to 16 VDC
• Typical Voltage: 12 VDC
• Power Consumption:
  • Maximum current: 35mA @12VDC
  • Quiescent current: 0.1A @12VDC

General

• Operation Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
• Operation Humidity: 10% to 90%
• Dimension (WxHxD): 73mm × 130.5mm × 56.7mm
• Weight: 195g
• Mounting Height: 1.8 to 2.4m
• Mounting Method: Wall
• Application Scenario: Indoor
• Bracket: Optional Wall & Ceiling Accessory
