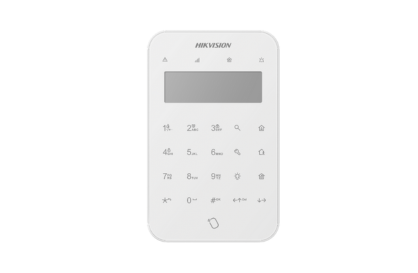

Wireless LCD Keypad
-
433MHz two-way wireless communication
-
LCD screen and LED to indicate system status
-
System configuration through LCD screen
-
Multiple operations like stay/away arm, disarm, silent alarm, output control
-
One-Push fire alarm, panic alarm, and medical alarm
-
Full touch key design with LED backlight
-
Fully remote configurable through App
Hardware Features
- Tag Reader Built In: Supported
- Serial Port: 3
- Tamper-Proof: Supported, front and rear
- Buzzer: Supported
- Power Switch: Power On/Off
Electrical Characteristics
- Battery Type: Four CR123 batteries
- Operation Humidity: 10% to 90%
- Operation Temperature: -10 °C to +55 °C
- Battery Life Span: Up to 2 years (standby time)
- Power Consumption:
- Quiescent Current: 80uA
- Max Current: 300mA
- Voltage: 3V
Wireless Transmission
- RF Frequency: 433 MHz
- RF Modulation: 2GFSK
- RF Distance: 800m (open area)
- Wireless Technology: Tri-X Wireless Technology
Display
- Numeric Key: Number key: 0-9, Function key: *, #, Query, Away Arm, Stay Arm, Disarm, Output, Project, Right, Left
- LED Indicator: Fault (orange), Enrollment/Signal (red/green), Arm (blue), Disarm (green), Alarm (red)
General
- Installation Method: Wall Mounting
- Dimension (WxHxD): 174.63mm × 109.62mm × 25.25mm
- Weight:
- With Batteries: 348g
- Without Batteries: 282g
- Color: White
